Getting OMPROUTE to work on ADCD

While working on getting IP V6 to work, I had problems getting my routing on z/OS working properly. I spent a few days working with TCPIP dynamic routing. What I have written below is what I have learned, it may well be wrong!

The problem…

With TCPIP you can define static routes. For example

  BEGINRoutes
  ; Destination        SubnetMask    FirstHop       LinkName    Size
  ROUTE 9.114.209.0    255.255.255.0    =            ETH2   MTU 1492
  ROUTE DEFAULT             10.1.1.1                 ETH1   MTU 1492
  ROUTE DEFAULT6  FE80::8C46:FAFF:FE86:1721    IFPORTCP6  MTU 1492
  ENDRoutes

This says

  • To send data IP V4 address9.114.209.* go via the link ETH2.
  • Otherwise send all IPV4 traffic to link ETH1 which has address 10.1.1.
  • Send all IP6 traffic to link IFPORTCP6 – which has an IP address of FE80::8C46:FAFF:FE86:1721.

Maintaining lists like these quickly become unmanageable as the size of the network increases.

Dynamically finding the configuration

To solve this problem TCPIP was enhanced to allow the system to discover information. The OMPROUTE daemon manages this.

When OMPROUTE is started, it queries the TCPIP configuration. It merges this information with its configuration data, and sends a request out to participating interfaces “Hello – who are you connected to”. From this information it can build a pictures of the network.

The “Hello – who are you connected to” could produce a lot of output; you can get information about all the links and routers in your environment.

You can divide your network ( from an OMPROUTE perspective ) into areas, and so only routers within an area exchange information. The areas have a number like 1.1.1.1.

The main backbone has number 0.0.0.0 You can send requests between areas. Routers which connect an area to the backbone are called Area Border Routers.

An Area Border Router can be configured as a default route – if a router does not know where to send the packet, send it to the Area Border Router.

Where is this information stored?

It looks like this configuration information is stored in the TCPIP address space, because if you shut down OMPROUTE, the configuration persists. I do not think the information will be updated, until OMPROUTE is restarted.

Routing packets

When a packet needs to be sent to a destination it uses the information provided by OMPROUTE. It uses two algorithms,

  • OSPF -Open shortest path first. As the state of an element in the network changes – the change is broadcast to all the routers. This means a router can quickly respond to a configuration change.
  • RIP – Routing interface protocol. This uses the number of hops. (I would have thought this was the same as the shortest path.) A RIP router has a 30 second heartbeat with its connected networks. If it has not received a response after 180 seconds, it assumes the network link is down.

It looks like OSPF is the better protocol, it is faster to respond to changes, and listens to changes, rather than using a heartbeat, and looks like it scales better.

Creating OMPROUTE

The documentation is not the clearest. I think it assumes you are an expert before you start.

The IBM documentation is here.

My additional steps included

  • The …TCPIP(PROF2) had “520 UDP OROUTED ; RouteD Server”. This name needs to match your started task proc. Either change the TCPIP profile, or use OROUTED as your proc name.
  • OMPROUTE procedure needs a userid with an OMVS segment.
  • Create RACF started task profile. Profile OMPROUTE.* with CLASS(STARTED). STDATA INFORMATION user=…
  • I created USER.Z25A.tcpparms(omp) and copied TCPIP.SEZAINST(EZAORCFG) into it.
  • Initially I forgot to use define the RACF profile CLASS(OPERCMDS) MVS.ROUTEMGR.OMPROUTE

My OMPROUTE procedure was

//OMPROUTE PROC
//OMPROUTE EXEC PGM=OMPROUTE,REGION=0M,TIME=NOLIMIT,
// PARM=('ENVAR("_CEE_ENVFILE_S=DD:STDENV")/')
//*
//OMPCFG DD DISP=SHR,DSN=USER.Z25A.TCPPARMS(OMP)
//STDENV DD *
RESOLVER_CONFIG=//'ADCD.Z25A.TCPPARMS(TCPDATA)'
OMPROUTE_DEBUG_FILE=/tmp/logs/omproute.debug
OMPROUTE_IPV6_DEBUG_FILE=/tmp/logs/omprout6.debug
OMPROUTE_DEBUG_FILE_CONTROL=1000,5
//SYSPRINT DD SYSOUT=*
//SYSOUT   DD SYSOUT=*
//CEEDUMP  DD SYSOUT=*,DCB=(RECFM=FB,LRECL=132,BLKSIZE=132)
//  PEND

The OMPROUTE configuration is in //OMPCFG … USER.Z25A.TCPPARMS(OMP)

Setting up syslogd

If you are not running SYSLOGD, all of the console messages are prefixed with

BPXF024I (TCPIP) Oct 6 10:11:10 omproute 67174435 : …

When running with SYSLOGD, the default syslogd configuration is to write errors to a file (for example into /var/log/2022/10/06/errors) , and throws away the remainder. I added the following to my syslogd configuration and restarted syslogd.

*.OMPROUTE..* /var/log/%Y/%m/%d/omproute

The messages were then put into the file, and were like

Oct 6 11:52:19 S0W1 omproute[67174443]: EZZ7800I OMPROUTE starting
Oct 6 11:52:24 S0W1 omproute[67174443]: EZZ7817I Using defined OSPF protocol 89
Oct 6 11:52:24 S0W1 omproute[67174443]: EZZ7817I Using defined OSPF protocol 89
Oct 6 11:52:24 S0W1 omproute[67174443]: EZZ7838I Using configuration file: dd:OMPCFG=USER.Z25A.TCPPARMS(OMP)

After OMPROUTE started, In this file I had 19 messages. There were 6 message on the job log.

Configuring OMPROUTE

I had a TCPIP configuration with

INTERFACE IFPORTCP6
  DEFINE IPAQENET6
  CHPIDTYPE OSD
  PORTNAME PORTCP
  INTFID 7:7:7:7
  IPADDR FE00::66:7:7:7

DEVICE PORTB MPCIPA
 LINK ETH2 IPAQENET PORTB
HOME 172.26.1.9      ETH2

DEVICE PORTA MPCIPA
 LINK ETH1 IPAQENET PORTA
HOME 10.1.1.2        ETH1


In my configuration file I had

OSPF_INTERFACE
       Attaches_to_Area =0.0.0.0
       IP_Address=10.1.1.2
       Subnet_mask=255.255.255.0
       NAME=ETH1
       ;
RIP_INTERFACE
       IP_Address=10.1.1.2
       Subnet_mask=255.255.255.0
       NAME=PORTA
       ;
IPv6_OSPF
       RouterID = 7.7.7.7
       ;
IPV6_OSPF_INTERFACE
       Attaches_to_Area =0.0.0.0
       NAME=IFPORTCP6
       ;
IPv6_RIP_Interface
       Name = IFPORTCP6
       ;

At startup I got messages in the job log

EZZ7871I NO MATCHING INTERFACE STATEMENTS FOR 172.26.1.20 (EZASAMEMVS)
EZZ8171I OMPROUTE IPV4 OSPF IS USING ASSIGNED ROUTER ID 10.1.1.2 FROM ETH1 INTERFACE
EZZ8171I OMPROUTE IPV6 OSPF IS USING CONFIGURED ROUTER ID 7.7.7.7 FROM IPV6_OSPF STATEMENT

To resolve the problem with EZASAMEMVS I added

 Interface
      IP_Address=172.26.1.20
      Name=EZASAMEMVS
      subnet_mask=255.255.255.0
      ;

Which basically says this interface is not involved in any dynamic routing.

Once this was resolved the messages in the syslogd file were

EZZ7800I OMPROUTE starting
EZZ7817I Using defined OSPF protocol 89
EZZ7817I Using defined OSPF protocol 89
EZZ7838I Using configuration file: dd:OMPCFG=USER.Z25A.TCPPARMS(OMP)
EZZ7883I Processing interface from stack, address 10.1.1.2, name ETH1, index 5, flags 441
EZZ7883I Processing interface from stack, address 172.26.1.20, name EZASAMEMVS, index 2, flags ffff8c50
EZZ7871I No matching interface statements for 172.26.1.20 (EZASAMEMVS)
EZZ7977I Processing IPv6 interface from stack, address fe00::66:7:7:7, name IFPORTCP6, index 51, flags 1, flags2 0
EZZ7977I Processing IPv6 interface from stack, address fe80::7:7:7:7, name IFPORTCP6, index 51, flags 1, flags2 2
EZZ7882I Processing static route from stack, destination 9.114.209.0, Mask 255.255.255.0, gateway 0.0.0.0 , table EZBMAIN
EZZ7882I Processing static route from stack, destination 0.0.0.0, Mask 0.0.0.0, gateway 10.1.1.1 , table EZBMAIN
EZZ7882I Processing static route from stack, destination ::, prefixlen 0, gateway fe80::8c46:faff:fe86:1721 , table EZBMAIN
EZZ8023I The RIP routing protocol is Enabled
EZZ8036I The IPv6 RIP routing protocol is Enabled
EZZ8171I OMPROUTE IPv4 OSPF is using assigned router ID 10.1.1.2 from ETH1 interface
EZZ7937I The IPv4 OSPF routing protocol is Enabled
EZZ8171I OMPROUTE IPv6 OSPF is using configured router ID 7.7.7.7 from IPV6_OSPF statement
EZZ7937I The IPv6 OSPF routing protocol is Enabled
EZZ7898I OMPROUTE Initialization Complete

Displaying information from OMPROUTE

On the console

You can use commands like

f omproute,ospf,list,all
d tcpip,,omp,ospf,list,all

Both of which will list all information about the OSPF configuration.

There are three types of resource you an display

  • OSPF – d tcpip,,omp,ospf,list,all or d tcpip,,omp,IPV6ospf,list,all
  • RIP – d tcpip,,omp,rip,list,all or d tcpip,,omp,IPV6rip,list,all
  • Other interface – d tcpip,,omp,generic,all or d tcpip,,omp,generic6,all

From netstat

Once OMPROUTE was active NETSTAT ROUTE gave me

IPv4 Destinations
Destination        Gateway         Flags    Refcnt     Interface
-----------        -------         -----    ------     ---------
Default            10.1.1.1        UGS      0000000000 ETH1
9.114.209.0/24     0.0.0.0         US       0000000000 ETH1
10.1.1.0/24        0.0.0.0         UO       0000000000 ETH1
10.1.1.2/32        0.0.0.0         UH       0000000000 ETH1
127.0.0.1/32       0.0.0.0         UH       0000000002 LOOPBACK
172.26.1.20/32     0.0.0.0         H        0000000000 EZAZCX
172.26.1.20/32     0.0.0.0         H        0000000000 EZASAMEMVS
IPv6 Destinations
DestIP:   Default
  Gw:     fe80::8c46:faff:fe86:1721
  Intf:   IFPORTCP6         Refcnt:  0000000000
  Flgs:   UGS               MTU:     1492
DestIP:   ::1/128
  Gw:     ::
  Intf:   LOOPBACK6         Refcnt:  0000000000
  Flgs:   UH                MTU:     65535
DestIP:   fe00::66:7:7:7/128
  Gw:     ::
  Intf:   IFPORTCP6         Refcnt:  0000000000
  Flgs:   UH                MTU:     9000
DestIP:   fe80::7:7:7:7/128
  Gw:     ::
  Intf:   IFPORTCP6         Refcnt:  0000000000
  Flgs:   UH                MTU:     9000

Where key fields are

  • Flgs UO. U=The interface is UP, and The route was created by OSPF (includes OSPF external routes).

TSO NETSTAT STACK – doesn’t. Get fullscreen output instead.

I was getting annoyed because the TCPIP NETSTAT command displays the output in line mode, and you cannot scroll back to look at it.

The documentation says you can use NETSTAT … STACK in a Rexx program, and use queued() to see how many lines were on the stack. This did not work for me. I always got 0 lines on the stack, until I exited ISPF when they all tried to execute and produced “IKJ56621I INVALID COMMAND NAME SYNTAX”.

A better (and more efficient way – you have to write less code) is create an Rexx program. I used USER.Z24C.CLIST(NS)

/* REXX */
ADDRESS ISPEXEC
'ISREDIT MACRO (a)'
x = outtrap("var.")
if a   = "" then a   = "HOME"
address TSO "netstat "a
x = outtrap("OFF")
if var.0  = 0 then exit

"ISREDIT AUTOSAVE OFF PROMPT"
do y =1 to var.0
   fn= var.y
   "ISREDIT LINE_AFTER  .ZLAST     =  (fn)"
end

If you use this command within an ISPF edit session, it will append the output to the bottom of the file.

Note: You pass parameters via ISREDIT MACRO(parms) rather than pars args parms.

You can always use DELETE ALL NX to clear the file before running the exec.

It uses AUTOSAVE OFF PROMPT, to make you explicitly save the output – or cancel from the session, and do not accidentally save it.

Extend it

As the output is in an ISPF Editor session, you can write edit macros to process the content, and filter or reformat it.

Shorthand

I extended it so I say “ns h” and it issues the netstat home command etc.

For example

'ISREDIT MACRO (a)'
if a   = "" then a  = "HOME"
else
if a = "i" then a = "devlinks (intfname ifportcp6"
else
if a = "h" then a = "home"
else
if a = "r" then a = "route addrtype  IPV6"
else
if a = "n" then a = "nd"
address TSO "netstat "a

Secure X3270 to z/OS on ADCD

I was asked if it was possible to connect to an ADCD system using X3270 and certificates, after quite a bit of work, the answer is yes – but it may not be easy.

The process is documented in the September version of IBM ISV zPDT Guide and Reference – which works, but the SecurePort is being removed in z/OS 2.5!

How to connect using x3270.

Using a “dialed in” local terminal into an ADCD system.

You can connect to z/OS using 3270 like terminals via a 3274 type controller and use applications like TSO. This is not a TCPIP connection, so you cannot use TLS to protect the session. These terminals are created using a Linux command like

x3270 -model 5 colin@localhost:3270 &

Where the :3270 matches the zPDT configuration statement 3270port 3270.

The colin@, known as the LUName, is put in the title of the window (so I could hot key to it, by setting key Ctrl+3 to wmctrl -a colin@).

Using X3270 and TCPIP over an insecure connection

You can connect over TCPIP into the TN3270 server using a command like

x3270 -model 5 10.1.1.2:23

This uses port 23, the standard telnet port.

You can specify an LU name – but you need to look at your TN3270 configuration to see what values have been configured. If you do not know what you are doing … it is safer to omit it.

SECUREPORT will be removed in z/OS 2.5

This was the “secure” way of providing a secure connection, before AT-TLS was developed. It is documented in Appendix E of IBM ISV zPDT Guide and Reference

The z/OS documentation says SECUREPORT will be removed

Keyword no longer supported for the TN3270E Telnet server: Removal of native
TLS/SSL support from TN3270E Telnet Server
, FTP Server, and DCAS.

How to configure and use TN3270

Ive written about it here.

My TN3270 configuration is member TNPO2023 is

TelnetParms         ; ATTLS defined secure port
 TTLSPort 2023      ;
 DEBUG CONN DETAIL CTRACE
 DEBUG CONN trace  CTRACE
 ConnType Secure    ; Client chooses secure or nonsecure connection.
EndTelnetParms

BeginVTAM
 Port 2023
 DEFAULTLUS
   TLS00001..TLS00030
 ENDDEFAULTLUS
 ALLOWAPPL TSO* DISCONNECTABLE ; Allow all users access to TSO
             ; applications.
             ; TSO is multiple applications all beginning with TSO,
             ; so use the * to get them all.
 ALLOWAPPL *      ; Allow all applications that have not been
                  ; previously specified to be accessed.
 USSTCP USSN
EndVTAM

Using AT-TLS

I eventually got a secure connection using AT-TLS. Many parameters need to be correct for the TLS Handshake to work. Some combinations should work – but did not.

I’ve blogged about setting up and using AT-TLS.

The short list of requirements:

  • The z/OS certificate needs CN(‘10.1.1.2’) where 10.1.1.2 is what is used by the X3270 client. It checks the value in the certificate with the value used in the connection. ALTNAME(IP(10.1.1.2)) did not work for me. If there is a mismatch you get x3270 message “hostname mismatch(62). When I used a host name of zos as in “x3270…. zos” – and the z/OS certificate has CN(‘zos’)…. it also worked.
  • You can use RSA, and NISTECC, certificates on z/OS.
    • TLS 1.2 or TLS 1.3 , RSA size 2048 or larger
    • TLS 1.2 or TLS 1.3, NISTECC size 521
    • BPECC not supported.
  • The CA was exported, sent down to Linux and used in the x3270 command (and also the openssl s_client command). For example -cafile ./doczosca.pem .
  • x3270 does not use a certificate on Linux – the doc implies it does, but nothing gets sent to the server.
  • In the AT-TLS configuration below,
    • the three cipher spec represent TLS 1.3, NISTECC and RSA.
    • ApplicationControlled On is required
    • HandshakeRole Server is required

Below is the AT-TLS configuration for my telnet (TN…) configuration. It should work with the keyring created in Appendix E. Secure x3270 connection in IBM ISV zPDT Guide and Reference September 2022 (SG24-8205-06). See JCL. The file below is on GIT.

TTLSRule                      TN
{
  LocalPortRange              2023
  Jobname                     TN3270
  Direction                   INBOUND
  TTLSConnectionActionRef     TNCA
  TTLSGroupActionRef          TNGA
  TTLSEnvironmentActionRef    TNEA

}
TTLSConnectionAction              TNCA
{
  TTLSCipherParmsRef              TLS13TLS12
  TTLSSignatureParmsRef           TNESigParms
  TTLSConnectionAdvancedParmsRef  TNCOonAdvParms
  CtraceClearText                 Off
  Trace                           50
}
TTLSConnectionAdvancedParms       TNCOonAdvParms
{
 #ServerCertificateLabel  NISTECC521
 #ServerCertificateLabel  RSA2048
 #ccp this was added
  ApplicationControlled         On
  SSLv3          OFF
  TLSv1          OFF
  TLSv1.1        OFF
  TLSv1.2        ON
  TLSv1.3        OFF
  SecondaryMap   OFF
  HandshakeTimeout 3
}

TTLSGroupAction      TNGA
{
  TTLSEnabled        ON
  trace              50
}
TTLSKeyringParms    TNKEYRING
{
  Keyring           START1/TN3270
}

TTLSEnvironmentAction      TNEA
{
  HandshakeRole            Server
  TTLSKeyringParms
  {
#    Keyring                START1/TN3270
# Use the keyring from the ZPDT documentation chapter E
     Keyring                START1/TN3270TLSring
  }
  TTLSSignatureParmsRef    TNESigParms
}
TTLSSignatureParms         TNESigParms
{
   CLientECurves Any
}
TTLSCipherParms             TLS13TLS12
{
#TLS 1.3
 V3CipherSuites      TLS_CHACHA20_POLY1305_SHA256
#V3CipherSuites      TLS_AES_256_GCM_SHA384
#V3CipherSuites      TLS_AES_128_GCM_SHA256
#TLS 1.2
# NSTECC
 V3CipherSuites      TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384
#RSA
 V3CipherSuites      TLS_RSA_WITH_AES_256_CBC_SHA256
}

I did many system SSL traces to get it working.

Some lessons learned

  • Although you can specify a certificate and private key on the Linux x3270 command, it does not use them. If you specify them, the certificate is not passed up to to z/OS.
  • The AT-TLS configuration needs TTLSEnvironmentAction -> HandshakeRole SERVER. (Despite what the documentation says). If you specify HandshakeRole ServerWithClientAuth, then z/OS expects the client to send a certificate as part of the handshake – and as x3270 does not sent a certificate – the handshake fails.
  • x3270 checks the host name. In the z/OS certificate the DN needs a CN matching the connection name. I connected to 10.1.1.2 – I needed SUBJECTSDN(CN(‘10.1.1.2‘) … . Without this you get hostname mismatch (62).
    • You should be able to specify RACDCERT …. ALTNAME(IP(10.1.1.2)), as an alternate name, but x3270 does not recognise it.
  • x3270 supports TLS 1.3 – if you have TLS 1.3 cipher specs configured in AT-TLS, and specify TLSv1.3 ON
  • X3270 supports TLS 1.2 – if you have TLS 1.2 cipher specs configured in AT-TLS, and specify TLSv1.2 ON and TLSv1.3 OFF.
  • x3270 sends up a list of cipher suites it will accept. The first three are TLS 1.3 (TLS_AES_256_GCM_SHA384 (0x1302) ,TLS_CHACHA20_POLY1305_SHA256 (0x1303),TLS_AES_128_GCM_SHA256 (0x1301).
  • When configuring TN3270 use V3CipherSuites not V3CipherSuites4char. V3CipherSuites takes 2 character strings and long TLS_… strings. V3CipherSuites4char only take 4 character strings, and not TLS_… strings.
  • If you change the PAGENT configuration you need F PAGNET,UPDATE to pick up the changes.
  • If you make a change to the PAGENT configuration, it does not always report problems. You should use Unix command commands like pagent -t -f TN 1>a … oedit a to display the TTLS configuration for rule TN, and edit the file to check.
  • If you change a keyring, you need F CPAGENT,REFRESH to pick up the change.
  • When you start PAGENT use the -l /var/log/pagent.log -d1 options (or similar). Review the /var/log/pagent.log file and check for “WARNING” and “ERR”
  • The PAGENT configuration can have the same parameter specified at the environment level and at the connection level. The pasearch -t -f TN command displays both sets of data … you have to be careful you are checking the right set of data.

Is the port active?

Check the port is being listened to

tso netstat conn ( port 2023

gave

EZZ2585I User Id  Conn     Local Socket           Foreign Socket         State
EZZ2586I -------  ----     ------------           --------------         -----
EZZ2587I TN3270   0000000B 0.0.0.0..2023          0.0.0.0..0             Listen

Showing the port is in Listen state from jobname TN3270 (which has userid TCPIP!)

Update to show it not working!

I was asked a question about AT-TLS, and it not working. I thought it would be useful to include some Wireshark output to help people to see what is happening.

I used x3270 10.1.1.2@3023 and it reported “SSL: Host certificate verification failed: self signed certificate in certificate chain”.

In the examples below there are three records of interest

  • Client Hello – this is the first step in the handshake. If you do not have this – your client is not sending a request
  • Server Hello – the back-end has processed the Client-Hello – and, in the example below, sends down a certificate
  • Alert (from the client). The client cannot validate the certificate because it does not have the CA for the certificate.

The Wireshark trace was

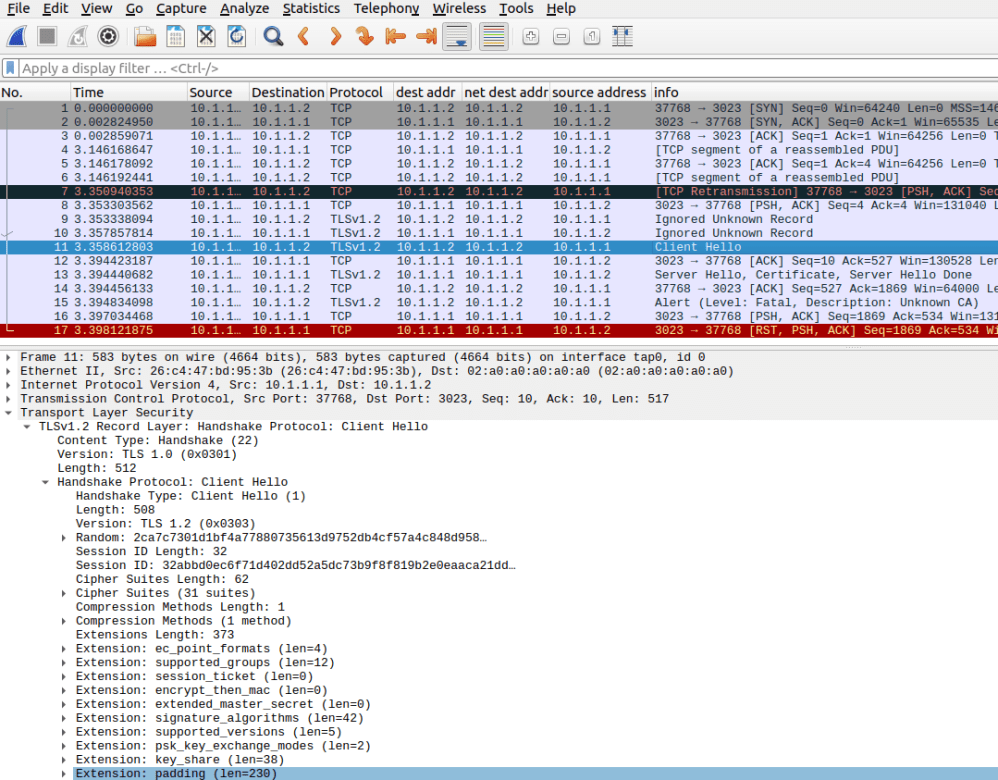

The important line is the “Client Hello” in blue. This is the start of the TLS handshake. In my case the length is 512 bytes. I would expect any TLS handshake to be a couple of hundred bytes long. If you do not get a “Client Hello”, your client is not set up for TLS/SSL.

The “Server Hello” line is where the server is responding (with a certificate).

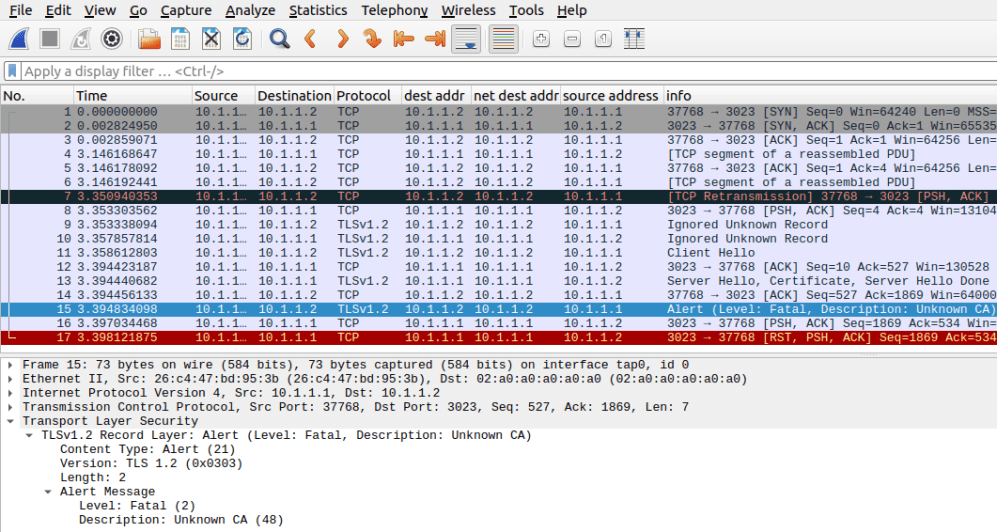

There is an error “Alert (Level: Fatal Description: Unknown CA”

Using AT-TLS and PAGENT on z/OS (with ADCD)

I wrote this post based on getting X3270 to work with TLS to z/OS. It covers some of the lessons I learned in doing so.

Policy Server

The Communications Server’s policy server allows you to define policies for: (the list below is mainly taken from the IBM documentation)

  • QoS: The overall Quality of Service provided to applications or users, in terms of elements such as throughput and delay. It might be critical to provide Business Application traffic better service during peak hours than that of FTP or web traffic.
  • IDS: Intrusion Detection Services provides the following support: scan detection and reporting, attack detection, reporting, and prevention, traffic regulation for TCP connections and UDP receive queues. You can use IDS policies to specify event conditions and the actions to take for particular events
  • IPSec: IP Security policy can be used for the following protection:
    • Protect a secure host on an internal network from unwanted network traffic
    • Provide protection for traffic between partner companies over connected networks
    • Allow secure sending of data over the Internet by providing IPSec virtual private network (VPN) support
  • Routing: Policy conditions consist of a variety of selection criteria that act as filters for policy-based routing (Routing) rules. Traffic can be filtered based on source addresses, destination addresses, source port range, destination port range, protocol, job name, security zone, and security label.
  • AT-TLS: (Application Transparent-Transport Layer Security) Provides TLS support at the TCPIP level (below the application). Using AT-TLS means applications do not need to be changed to support TLS.

The PAGENT (Policy Agent) started task runs the policy server. It can use local configuration files, or data in LDAP.

Using AT-TLS

It was a struggle to get a secure connection using AT-TLS and x3270. Many parameters need to be correct for the TLS Handshake to work. Some combinations should work – but did not, the documentation is not 100% correct. When I knew what the correct parameters were, the configuration was pretty easy! The configuration technique looks as if it was designed for a baby system. It is not easy to follow good housekeeping, and change management practices, which made the overall experience harder than I expected.

X3270 requirements

x3270 is a 3270 emulator. It can use TLS to provide a secure connection to z/OS. Although you can specify a certificate for X3270 to use – x3270 does not used the client certificate.

At a high level, the TLS flow between x3270 and AT-TLS is:

  • X3270 client sends a “client-hello” request to the server. This includes what levels of TLS are supported (TLS 1.2, TLS 1.3), and the cipher specs it supports (what encryption type,what checksum algorithm etc)
  • The server (Pagent) matches the information sent in the “Client-hello” with its configuration. For example, select a certificate which matches the encryption type, and finds a common cipher spec.
  • If there is an acceptable certificate, and cipher spec, the selected certificate and selected cipher spec are sent down to the client (“server hello”).
  • The x3270 client checks that the certificate is acceptable – the CN in the certificate matches the address of the server. (CN(10.1.1.2) matches the IP address 10.1.1.2).
  • If client authentication is requested, then the client sends its certificate to the server. This is not supported by X3270, and the server has to be configured with HandshakeRole Server.

X3270 initially sends that it can support TLS 1.2 and TLS 1.3, and a variety of cipher specs.

TN3270 requirements

Not all certificates worked. I could only get certificates to work with

  • RSA key size >= 2048
  • NISTECC leysize >= 521

To AT-TLS, this is just a certificate name in a keyring.

In the AT-TLS configuration

  • ApplicationControlled On is required. This allows TN3270 to interact with AT-TLS, for example display the cipher spec being used.
  • HandshakeRole Server is required.
  • It needs a keyring, and access to the private part of the certificate. For example CONTROL access to the RACF profile userid.ring.LST int the RDATALIB class.
  • Certificates
    • If you do not specify a certificate – it takes the keyring default.
    • You can specify a(one) certificatelabel.
    • You can specify multiple ServerCertificateLabel statements. With this you can support different certificate types, and support migration to newer certificates.

AT-TLS configuration – in general

The Communications Server as a group of products, do not have a consistent way of configuring the individual components. For example some use # as a comment delimiter, other products use ; . Configuring the Policy Server is not difficult – just different, and does not behave as other z/OS components do, or as I expected.

In my PAGENT JCL is

//STDENV -> USER.Z24C.TCPPARMS(PAGENTEN).

This file has

PAGENT_CONFIG_FILE=//'USER.Z24C.TCPPARMS(PAGENTCF)'
LIBPATH=/usr/lib

The PAGENTCF member is like

CommonTTLSConfig //'USER.Z24C.TCPPARMS(PAGENTCO)'
tcpImage TCPIP   //'USER.Z24C.TCPPARMS(PAGENTT)'
tcpImage TCPIP1  //'USER.Z24C.TCPPARMS(PAGENT1)'

File USER.Z24C.TCPPARMS(PAGENTT) has the configuration for one TCPIP image.

TTLSConfig //'USER.Z24C.TCPPARMS(PAGENTTN)' FLUSH PURGE
TTLSRULE ... #and other inline definitions

QOSConfig  //'USER.Z24C.TCPPARMS(PAGENTQ1)' FLUSH PURGE
policyAction  ...  # and other inline QOS definitions

# and similarly for IDS, IPSec,Routing etc

You are allowed one TTLSConfig statement per TCPIP file. If you have multiple, only the last one will be used. You can have multiple TTLSRULE statements.

How the configuration works

Within a file, if you have a set of definitions with the same name, the last one will be used. For example

TTLSEnvironmentAction                 TNEA
{
  TTLSKeyringParms
  {
    Keyring                   START1/TN3270
  }
  Trace 17
}
TTLSEnvironmentAction                 TNEA
{
  TTLSKeyringParms
  {
    Keyring                   START2/TN3270
  }
}

The keyring will be START2/TN3270 and Trace is not specified.

If you use Unix command pasearch -t , it will show keyring:START2/TN3270 and no trace statement in that section. Definitions with the same name are replaced, not merged.

Having just one TTLSCONFIG file makes it harder to manage. I would like to be able to have a configuration file for each port, or have all of the TLSRULEs in one file, and TTLSCipherParms in another file, and so on. It would make it easier to manager, and perform change management on the files.

The configurations from tcpImage TCPIP2 and tcpImage TCPIP2 are isolated from each other. If you want to use common definitions between tcpImages, put them in CommonTTLSConfig file.

The commonTTLSConfig statements are processed before the tcpImage statements, so a definition set in the tcpImage file will take precedence over a common definition.

The commonTTLSConfig file seems to need to be self consistent. I added

TTLSEnvironmentAction                 TNEA
{
  TTLSSignatureParmsRef       TNESigParms
}

Without the TNESigParms definition. I got strange configuration error messages until I included the TNESigParms {..} in the file.

Using smaller units.

I remember some advice I was given… try to get all of your changes visible on one screen. Use subroutines or other ways of dividing up the code.

You can have

TTLSCipherParms
{
   TTLSCipherParms
   {
      V3CipherSuites      TLS_CHACHA20_POLY1305_SHA256
   }
}

But the list of cipher suites could be long.

You can have a …REFerence o a set of definitions.

TTLSConnectionAction   TNCA
{
  TTLSCipherParmsRef   TLS13TLS12
}
TTLSCipherParms        TLS13TLS12
{
  #TLS 1.3
   V3CipherSuites      TLS_CHACHA20_POLY1305_SHA256
   #V3CipherSuites      TLS_AES_256_GCM_SHA384
   #V3CipherSuites      TLS_AES_128_GCM_SHA256
 #TLS 1.2
   # NSTECC
   V3CipherSuites   TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384
   #RSA
   V3CipherSuites      TLS_RSA_WITH_AES_256_CBC_SHA256
}

The allows you to create a “subroutine” out of the cipherspecs. It also allows you to use the same definitions in multiple places.

Within a TCPIPIMAGE configuration

The same parameter can be specified in more than one configuration statement. The documentation says:

For parameters that can be specified in multiple action types, the value used by a connection is
determined by the following hierarchical rule set, they first found is used
.

  1. If the parameter is specified in the TTLSConnectionAction statement that is the value used.
  2. If the parameter is specified in the TTLSEnvironmentAction statement that is the value used.
  3. If the parameter is specified in the TTLSGroupAction statement that is the value used.
  4. If a default value is defined, that is the value used.
  5. No value is used by AT-TLS and no parameter is explicitly passed to System SSL.

So if you have

TTLSEnvironmentAction  TNEA
{
  TTLSCipherParmsRef     TLS13
}
TTLSConnectionAction   TNCA
{
  TTLSCipherParmsRef    TLS13TLS12
}

The the CipherParms TLS13TLS12 will be used, because Connection is used before Environment.

If you use pasearch -t … it will display the configuration with sections like

TTLS Action:                  TNGA
    Scope:                      Group

TTLS Action:                  TNEA
  Scope:                      Environment

  TTLSCipherParms:
    v3CipherSuites:
      1303  TLS_CHACHA20_POLY1305_SHA256
 ...
TTLS Action:                  TNCA
    Scope:                      Connection
    TTLSCipherParms:
     v3CipherSuites:
      1303  TLS_CHACHA20_POLY1305_SHA256
      C02C  TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384
      003D  TLS_RSA_WITH_AES_256_CBC_SHA256

Because of the order, Scope:Connection takes precedence over Scope:Environment, the three cipher specs will be used.

When configuring AT-TLS I found it easiest if I used the Unix commands pasearch -t -f TN 1>a; oedit a and specify the rule name I was interested in (TN), then search for the last instance of the attribute of interest

PDSE or Unix file?

If you configuration is in Unix files, then you can get AT-TLS to reread this on regular basis – typically half an hour. This is useful of you want changes to be picked up automatically, but not if you want strict change control management.

AT-TLS configuration for TN3270

Below is the AT-TLS configuration for my telnet (PAGENTTN…) configuration.

TTLSRule                      TN
{
  LocalPortRange              2023
  Jobname                     TN3270
  Direction                   INBOUND
  TTLSConnectionActionRef     TNCA
  TTLSGroupActionRef          TNGA
  TTLSEnvironmentActionRef    TNEA

}
TTLSConnectionAction              TNCA
{
  TTLSCipherParmsRef              TLS13TLS12
  TTLSSignatureParmsRef           TNESigParms
  TTLSConnectionAdvancedParmsRef  TNCOonAdvParms
  CtraceClearText                 Off
  Trace                           50
}
TTLSConnectionAdvancedParms       TNCOonAdvParms
{
 ServerCertificateLabel  NISTECC521
 ServerCertificateLabel  RSA2048
#ccp this was added
  ApplicationControlled         On
  SSLv3          OFF
  TLSv1          OFF
  TLSv1.1        OFF
  TLSv1.2        ON
  TLSv1.3        OFF
  SecondaryMap   OFF
  HandshakeTimeout 3
}

TTLSGroupAction      TNGA
{
  TTLSEnabled        ON
  trace              50
}
TTLSKeyringParms    TNKEYRING
{
  Keyring           START1/TN3270
}

TTLSEnvironmentAction      TNEA
{
  HandshakeRole            Server
  TTLSKeyringParms
  {
    Keyring                START1/TN3270
  }
  TTLSSignatureParmsRef    TNESigParms
}
TTLSSignatureParms         TNESigParms
{
   CLientECurves Any
}
TTLSCipherParms             TLS13TLS12
{
#TLS 1.3
 V3CipherSuites      TLS_CHACHA20_POLY1305_SHA256
#V3CipherSuites      TLS_AES_256_GCM_SHA384
#V3CipherSuites      TLS_AES_128_GCM_SHA256
#TLS 1.2
# NSTECC
 V3CipherSuites      TLS_ECDHE_ECDSA_WITH_AES_256_GCM_SHA384
#RSA
 V3CipherSuites      TLS_RSA_WITH_AES_256_CBC_SHA256
}

I did many system SSL traces to get it working.

Using certificates

  • If you do not specify a certificate label in the configuration, AT-TLS takes the default from the keyring.
  • You can specify a certificate label using CertificateLabel…
  • If you want to specify more than one Certificate label – for example you are migrating from one certificate to another, or you want to support an RSA certificate and an Elliptic Curve certificate then specify one or more ServerCertificateLabel … statements.

Some lessons learned

  • When configuring TN3270 use V3CipherSuites not V3CipherSuites4char. V3CipherSuites takes 2 character identifiers and long TLS_… strings. V3CipherSuites4char only take 4 character identifiers , and not TLS_… strings.
  • If you change the PAGENT configuration you need F PAGNET,UPDATE to pick up the changes.
  • If you make a change to the PAGENT configuration, it does not always report problems. You should use Unix command commands like pagent -t -f TN 1>a ;oedit a to display the TTLS configuration for rule TN, and edit the file to check.
  • If you change a keyring, you need F CPAGENT,REFRESH to pick up the change.
  • When you start PAGENT use the -l /var/log/pagent.log -d1 options. Review the /var/log/pagent.log file and check for “WARNING” and “ERR”
  • The PAGENT configuration can have the same parameter specified at the environment level and at the connection level. The pasearch -t -f TN command displays both sets of data … you have to be careful you are checking the right set of data.
  • PAGENT does not report if a section was skipped. I had two TTLSConfig statements in a TCPIP image file, and only the last one was used.
  • You need the syslogd daemon running to capture error messages in a file.

General PAGENT commands

See here for starting PAGENT (and the trace levels you can use).

Updating PAGENT

If you change the PAGENT configuration (my job is CPAGENT) you can use

F CPAGENT,UPDATE

To refresh the configuration,

F CPAGENT,REFRESH

to refresh the configuration and restart processing. Existing sessions will continue unchanged.

When configuring TN3270 you can use the Unix command pasearch -t -f TN 1>a to display just the TLS policy you are interested in (TN) .

Displaying information

You display configuration information using the Unix command pasearch…

What does a rule configuration look like?

I frequently use

pasearch -t -f TN

This shows me the TLS configuration for rule TN

What does the high level TLS object look like?

pasearch -c -t

gave me

TTLS Policy Object:
  ConfigLocation:       Local             LDAPServer:        False
  CommonFileName:
  ImageFileName:        //'USER.Z24C.TCPPARMS(PAGENTTN)'
  ApplyFlush:           True              PolicyFlush:       True
  ApplyPurge:           True              PurgePolicies:     True
  AtomicParse:          True              DeleteOnNoflush:   False
  DummyOnEmptyPolicy:   True              ModifyOnIDChange:  False
  Configured:           True              UpdateInterval:    1800
  TTLS Enabled:         True
  InstanceId:           1666079380
  LastPolicyChanged:    Tue Oct 18 08:49:40 2022

The CommonFileName: value was blank, which was a surprise as I had specified a file.

How to display a summary of a rule?

pasearch -t -n

gave

policyRule:             TN
  TTLS Action:          TNGA
  TTLS Action:          TNEA
  TTLS Action:          TNCA

How do I display which policy or rule has been used?

I could not find a way of displaying which rules were used, and which options were used.

Using Telnet (TN3270) on z/OS

This article gives some of the lessons I learned from using TN3270. My mission had been to connect x3270 to TN3270 (telnet) using TLS. Some things are obvious once you know, but frustrating all the same.

Creating the configuration

You start TN3270 with the name of the configuration file it should use. For me this was USER.Z24C.TCPPARMS(TN3270).

My file looks like

TelnetGlobals
....
EndTelnetGlobals

 include adcd.z24c.tcpparms(port0023)  ; General Applications
 include user.z24c.tcpparms(tnpt2023)  ; TLS Support AT-TLS
 include user.z24c.tcpparms(tnpt3023)  ; TLS Support AT-TLS


Where the include files contain self contained information about each port. My member name tnpo2023 is for TelNet, POrt 2023.

Restricting access

You can restrict which IP addresses can use which profile (port). See Transport Layer Security-Telnet profile example. The example below has a few minor tweaks from me.

TelnetParms         ; ATTLS defined secure port
 TTLSPort 3023      ;
 DEBUG CONN DETAIL JOBLOG
 DEBUG CONN trace  CTRACE
 ConnType None      ; Default is no access
EndTelnetParms


BEGINVTAM
 Port 1023
 ...                    ; Mapping statements
 IPGROUP LocalIP        ; Subnets for buildings A and B
   255.255.255.0:10.1.1.0
   255.255.255.0:10.1.2.0
 ENDIPGROUP

 PARMSMAP BasicPG localIP  ; hosts defined in IPGROUP localIP
 PARMSGROUP BasicPG     ; override default ConnType
   CONNTYPE NONE        ; support basic connections if mapped to this group
 ENDPARMSGROUP
; this defines who has access
 PARMSMAP AdminPG 10.1.0.2 ; this ip address can use secure connections
 PARMSGROUP AdminPG     ; override default ConnType
   CONNTYPE SECURE      ; allow any type of connections if mapped to this group
 ENDPARMSGROUP

ENDVTAM

This says

  • The default connection type is NONE (from TelnetParms)
  • IP addresses 10.1.1.0, and 10.1.2.0 have PARMSMAP BASICPG which have CONNTYPE NONE.
  • IP address 10.1.0.2 has PARMSMAP AdminPG which has CONNTYPE SECURE.

Changing the configuration

You can update the TN3270 configuration while it is active. You use a command like

v tcpip,tn3270,obeyfile,USER.Z24C.TCPPARMS(TN3270)

Where USER.Z24C.TCPPARMS(TN3270) is the configuration file used at start up. If you have the configuration spread across several files, you cannot use OBEYFILE on one file – you need to use a complete configuration file. It appears to replace the current configuration with the specified one.

Displaying information.

You can use TSO netstat telnet to display the ports in use by Telnet. For proper display, you need to use the d tcpip,tn3270,…. command.

This is a bit restrictive as it only displays the information on the syslog. You can use Extended consoles, and so REXX can capture the output – but it still writes many records to SYSLOG and the operator console.

Display connection information

You can use the d tcpip,tn3270,conn,detail command, for example

EZZ6064I TN3270 CONN DISPLAY         FRAME LAST   F      E   SYS=S0W1
         ENCR                                           TSP
CONN     TYPE IPADDR..PORT           LUNAME   APPLID    PTR LOGMODE
-------- ---- ---------------------- -------- --------  --- --------
00000048      10.1.0.2..51928        TCP00001 A06TSO02  TAE SNX32703
----- PORT:    23  ACTIVE           PROF: CURR CONNS:      1
------------------------------------------------------------
00000043 C02F 10.1.0.2..48126        TLS00001           TPE
00000046 C02F 10.1.0.2..40978        TLS00002 A06TSO03  TAE SNX32703
----- PORT:  2023  ACTIVE           PROF: CURR CONNS:      2
------------------------------------------------------------

Shows message EZZ6064I

  • there are two sessions with PORT 2023. Both using cipher suite C02F. The cipher spec value is described here.
  • The LUNAME of TCP… this comes from the BEGINVTAM .. part of the TN320 definitions.
  • Two terminals are connected to TSO (A06TS002), with the given logmode. The A in TSP means Active

EZZ… messages are here.

I could not see a way of displaying which z/OS certificate is being used.

Display profile information

d tcpip,tn3270,profile

gives

  PERSIS   FUNCTION        DIA  SECURITY    TIMERS   MISC
 (LMTGCAK)(OPATSKTQSSHRTL)(DRF)(PCKLECXN23)(IPKPSTS)(SMLT)
  -------  --------------  ---  ----------  -------  ----
  L******  ***TSBTQ***RT*  TT*  BB********  IP**ST*  SMD*
----- PORT:    23  ACTIVE           PROF: CURR CONNS:      0
------------------------------------------------------------
  L******  ***TSBTQ***RT*  TJ*  TSTTTT**TT  IP**STT  SMD*
----- PORT:  2023  ACTIVE           PROF: CURR CONNS:      0
------------------------------------------------------------
  L******  ***TSBTQ***RT*  TJ*  TSTTTT**TT  IP**STT  SMD*
----- PORT:  3023  ACTIVE           PROF: CURR CONNS:      1
------------------------------------------------------------
   FORMAT            LONG
   NOSMFPROFILE
   TCPIPJOBNAME      TCPIP
   TNSACONFIG        DISABLED
   DEBUG TASK        EXCEPTION  CONSOLE
   DEBUG CONFIG      EXCEPTION  CONSOLE
   DEBUG CONFIG      TRACEOFF
21 OF 21 RECORDS DISPLAYED

If you issue d tcpip,tn3270,profile,detail you get a lot of output – it will display only the first nnn lines. You can change this value by d tcpip,tn3270,profile,detail,MAX=200.

You may find it easier to specify a port tcpip,tn3270,profile,port=23,detail to get less output.

To display the TN3270 configuration options you can specify profile=…

d tcpip,tn3270,profile,port=3023,profile=xxxx,detail

Where profile=xxxx can be PROFile =CURRent|prfid|ACTive|ALL|Basic|Pending|Secure

Current, Active, ALL and basic seem to display the same information. I do not know the difference between them.

Displaying “VTAM” information

You can display some of the configuration, but not all of it. For example

D TCPIP,TN3270,object,PORT=3023,type=parmsgrp

gives

OBJECT      CONNS  CLIENT ID CLIENT ID        ITEM
NAME        USING  TYPE      NAME             SPECIFIC   OPTIONS
----------  ------ --------- ---------------- ---------- --------
PARMSGRP
 BASICPG         0 IPGRP     LOCALIP
 ADMINPG         1 IPADDR    10.1.0.2

But you cannot display what LOCALIP is.

Where does the parameter come from?

d tcpip,tn3270,profile,port=3023,detail

This command gives

EZZ6080I TN3270 PROFILE DISPLAY 771
  PERSIS   FUNCTION        DIA  SECURITY    TIMERS   MISC
 (LMTGCAK)(OPATSKTQSSHRTL)(DRF)(PCKLECXN23)(IPKPSTS)(SMLT)
  -------  --------------  ---  ----------  -------  ----
  *******  ***TSBTQ***RT*  EC*  BB********  *P**STS  *DD* *DEFAULT
  L------  ------------T   TT-  ----------  I---ST-  SM-- *TGLOBAL
  -------  -------------   TJ-  TSTTTT--TT  ------T  ---- *TPARMS
  L******  ***TSBTQ***RT*  TJ*  TSTTTT**TT  IP**STT  SMD* CURR

The field column headings are described here.

  • * means the option was turned off
  • – the option was not set.

In the first column (LMTGCAK)

  • The default is *
  • From the T(elnet)GLOBAL the value is L
  • From T(elnet)PARMS nothing is specified
  • So the Current definition is L

Quiescing and resuming ports

Quiescing a port stops new connections from using it. Resume allows it to be used.

v tcpip,tn3270,quiesce,port=3023
v tcpip,tn3270,resume,port=3023

Stopping a port may be bad for you

You can use a command

v tcpip,tn3270,stop,port=3023

Which cancels existing sessions using the port, and stops new connections from using it.

I cannot find how to start the port.

If you use

v tcpip,tn3270,obeyfile,USER.Z24C.TCPPARMS(TN3270)

to refresh the whole configuration all ports are restarted, so you can start all – but not just one port.

Setting up sftp on z/OS with ADCD

SFTP is an FTP implementation from openssl, it copies files to and from Unix Services.

The documentation z/OS OpenSSH User’s Guide(SC27-6806-50) is very good. It is clear, and answered most of my questions.

The ADCD implementation is not 100% complete, but it does not take much to fix it.

Background

The server runs in Unix Services. When you use “START SSHD”, it runs the started task SSHD which attaches a process in Unix Services, and then the started task ends! If you use the operator command “D A,SSH*” it will show it is running in Unix Services.

The documentation has several ways of stopping it – I just use cancel!

Messages are written to the syslog daemon.

It uses port 22. ADCD.Z24C.TCPPARMS(PROF2) has the statement

PORT
    ...
    22 TCP SSHD*               ; port for sshd daemonrver

This means that jobs SSHD* are authorised to use port 22.

Getting it working

Configure syslogd

See Setting up syslogd on z/OS.

To capture messages produced by SSHD, you need syslogd configured for SSHD. For example add to /etc/syslog.conf

*.SSHD.*.* /var/log/SSHD

Generate the missing certificates

From IBMUSER in OMVS, I issued

/usr/sbin/sshd -f /etc/ssh/sshd_config

This reported two cipher specs were missing. I used the command

ssh-keygen -A

This gave me

ssh-keygen: generating new host keys: ECDSA ED25519

Starting the sshd server

Use the operator command D A,SSH* to see if it is already running. if you want to restart it, cancel it using the operator command C SSHD…

Issue the operator command start SSHD. The started task will start, and then end, but will leave a Unix Services task running.

Note: After IPL, D SSH* gives

SSHD     SSHD     *OMVSEX  OWT  SO  A=0042   PER=NO   SMC=000
                                    WUID=STC03715 USERID=START1
                                    WKL=STARTED  SCL=STCLOM   P=1


after SSHD is cancelled and restarted the output is

SSHD3    STEP1    START1   OWT  AO  A=0034   PER=NO   SMC=000
                                    WUID=STC03701 USERID=START1
                                    WKL=SERVERS  SCL=SRVOMVS  P=1


so its workload behaviour may be different.

Use it

From my Linux machine I was able to use sftp colin@10.1.1.2 .

What is a link-local address and a global address in TCPIP V6?

When reading about routing in IP V6 there is frequent use of the terms link-local and global address. There are several definitions of what these mean – but I think you need to be an expert to understand them. Below are my definitions – they may be right – they may be wrong – but I hope they provide some useful information.

I found this site was a good basic guide to IP addresses.

Some basic information

  • A connection can either support IP V4 or IP V6 configuration
  • Each end of a connection has at least one IP address
  • IP addresses are hierarchical
    • The top 48 bits are global routing
      • If the top value is FE80 then the address is local. A router will not pass this outside.
      • If the top value is 2 then this is a global and the “ISP provider” is within the 48 bits. My Laptop has an IP V6 address like 2a00:1234:5678:9ABC. I used this site to display who my service provider was.
    • The next 16 bits are the subnet
    • The last 64 are the interface id
  • With IP V4, addresses starting 192.168 are local addresses and do not pass through a router – so FE80::… is not that new a concept.
  • A server needs fixed IP address, so clients can access it.
  • A client does not need a fixed IP address, as when it requests a service from the server, it sends its address as part of TCPIP. The server sends the reply back to this address.

The link local address

The link-local address at the end of a connection can have its address allocated:

  • Manually. This means you can give the IP address to your end users (or a DNS)
  • Allocated automatically. This can be based on the MAC address. IP V6 has network and neighbourhood discovery. As a connection becomes active it knows the IP address of the remote end, and can ask the remote end for the configuration it knows about. When the connection is closed, the network forgets the information about the connection, and its neighbourhood. The next time the connection starts, if it has a different IP address makes no difference – the information about the previous IP address has been forgotten
  • The advantage of having a different IP address is it obscures the client’s origin. If you have the same address each time, it is possible to build up a profile of your usage. If you use a different IP address – it makes it harder to do this.

If you have multiple network connections, you may need to help TCPIP send the traffic to the correct destination. For example

ping6 -I tap2 ….

which says sent it down the tap2 interface.

If you use ADCD the find_IO command gives

 FIND_IO for "colin@colin-ThinkCentre-M920s"

         Interface IPv4    IPv6
 Path    Name      Address Address
------   --------- ----------------------
 .
  A0     tap0     10.1.1.1 fe80::d442:b0ff:fe0c:96ab%tap0
  A1     tap1     10.1.2.1 fe80::a015:53ff:fe0b:8685%tap1
d

With FTP

ftp fe80::7:7:7:7%tap1

GSK trace and TCPIP

To track down a TLS setup problem with TN3270 and AT-TLS, I had to collect a System SSL Trace. You can collect data and have it output to the joblog, or the console. This is not good practice as it can produce a lot of output, and it is hard to read the data.

This blog post follows on from Collecting a TCPIP Packet trace on z/OS.

You can use the same CTRACE writer procedure for all your CTRACE work. It is better not to have more than one trace writing to it at a time.

Erik Janssen sent me an email on how to take the CTRACE file and process it in Wireshark. I’ve put his comments at the bottom.

You need to start the GSK Server task

See SSL Server task

My GSKSRVR JCL looks like

//GSKSRVR  PROC  REGSIZE=256M,OUTCLASS='A'
//*--------------------------------------------------------------------
//GO       EXEC  PGM=GSKSRVR,REGION=&REGSIZE,TIME=1440,
//  PARM=('ENVAR("HOME=/etc/gskssl/server"),TERM(DUMP)                 X
//             / 1>DD:STDOUT 2>DD:STDERR')
//STDOUT   DD  SYSOUT=&OUTCLASS,DCB=LRECL=250,
//  FREE=END,SPIN=UNALLOC
//STDERR   DD  SYSOUT=&OUTCLASS,DCB=LRECL=250,
//  FREE=END,SPIN=UNALLOC
//SYSOUT   DD  SYSOUT=&OUTCLASS,
//  FREE=END,SPIN=UNALLOC
//CEEDUMP  DD  SYSOUT=&OUTCLASS,
//  FREE=END,SPIN=UNALLOC

I did not change any parameters, or defaults.

Start it

s GSKSRVR

It gives

GSK01001I System SSL version 4.4, Service level OA59115.
GSK01003I SSL server initialization complete.

Within the TELNET (TN3270) parameters I had

TelnetParms         ; ATTLS defined secure port
 TTLSPort 2023      ;
 DEBUG CONN DETAIL CTRACE
 DEBUG CONN trace  CTRACE
 DEBUG TRACE CTRACE
 ConnType Secure    ; Client chooses secure or nonsecure connection.
EndTelnetParms

This limits the trace to only port 2023, other ports, such as 0023 were unaffected.

I set up parmlib member for GSK trace, member CPGSKON

TRACEOPTS
          WTRSTART(ctwtr)
          on
          jobname(TCPIP)
          wtr(ctwtr)
          OPTIONS('LEVEL=255')

I turned trace on using

TRACE CT,ON,COMP=GSKSRVR,PARM=CTGSKON

This gave

IEE252I MEMBER CTGSKON FOUND IN USER.Z24C.PARMLIB
GSK01040I SSL component trace started.
ITT038I ALL OF THE TRANSACTIONS REQUESTED VIA THE TRACE CT COMMAND WERE SUCCESSFULLY EXECUTED.

ITT110I INITIALIZATION OF CTRACE WRITER CTWTR COMPLETE.

The CTWTR procedure was started was part of this command.

You stop the trace with

trace CT,off,COMP=GSKSRVR

Wait for the message

ITT038I ALL OF THE TRANSACTIONS REQUESTED VIA THE TRACE CT COMMAND WERE SUCCESSFULLY EXECUTED.

And stop the CTWTR writer using

TRACE CT,WTRSTOP=CTWTR

You should get messages

ITT038I ALL OF THE TRANSACTIONS REQUESTED VIA THE TRACE CT COMMAND WERE SUCCESSFULLY EXECUTED.
IEE839I ST=(ON,0001M,00005M) AS=ON BR=OFF EX=ON MO=OFF MT=(ON,064K)
IEF196I AHL904I THE FOLLOWING TRACE DATASETS CONTAIN TRACE DATA :
IEF196I IBMUSER.CTRACE1
AHL904I THE FOLLOWING TRACE DATASETS CONTAIN TRACE DATA :
IBMUSER.CTRACE1

ITT111I CTRACE WRITER CTWTR TERMINATED BECAUSE OF A WTRSTOP REQUEST.

If there is data in the file, you can use IPCS to format it.

The IPCS command is

CTRACE COMP(GSKSRVR) FULL ALL

You get output like

S0W1      MESSAGE   00000008  15:19:52.221020  SSL_INFO
  Job TCPIP     Process 0201003E  Thread 00000001  read_v3_client_hello
  Received CLIENT-HELLO message

S0W1      DUMP      00000020  15:19:52.221414  SSL_ASCII_DUMP
  Job TCPIP     Process 0201003E  Thread 00000001  read_v3_client_hello
  CLIENT-HELLO message
    00000000: 010001FC 03030C33 81E156C3 DF4693DD   *.......3..V..F..*
    00000010: 621CA636 8A75BDF0 26F3DE8F 831B78BC   *b..6.u..&.....x.*
...
S0W1      MESSAGE   00000008  15:19:52.226897  SSL_INFO
  Job TCPIP     Process 0201003E  Thread 00000001  edit_ciphers
  Using server certificate 'ZZZZ'
...
S0W1      MESSAGE   00000008  15:19:52.223132  SSL_INFO
  Job TCPIP     Process 0201003E  Thread 00000001  read_v3_extended_client_hello
  Elliptical curve 0030 is being skipped as it is only supported in TLS 1.3

Getting the data into Wireshark format.

Wireshark is an excellent tool for doing network trace, and decoding the flows. You can also is it to process the CTRACE data. Thanks for Eril Janssen for the instructions below on how to get from CTRACE to Wireshark.

You need to use the CTRACE SNIFFER option. This writes to the file with DDNAME of SNIFFER

Allocate a VB 1600 LRECL dataset and allocate it to a ddname, for example SNIFFER
ALLOC DD(SNIFFER) DS(<some dsname>) SHR
From IPCS you can now:
CTRACE COMP(SYSTCPDA) GMT SHORT
OPTIONS((SNIFFER(1600,TCPDUMP) NOREASSEMBLY))
DS(‘<the trace ds>’)
The formatted trace will now be in <some dsname>. Do a binary transfer to your pc and you show be able to open the trace in wireshark.

I tend to use IPCS in batch (so I do not get the lock on the trace file, (grin)).

Problems

I was using CTRACE, the IPCS, then CTRACE etc. Sometimes the CTRACE writer would not start (or stop). This can be because you are still in IPCS, and IPCS has a lock on the dataset, or you have quit from IPCS, and TSO still has a lock on the data set. I used =X to get out of the ISPF session, and this usually freed it up.

I could it was easiest to run IPCS in batch – it saved lots of typing, and starting/stopping CTRACE when I had got it wrong.

There may still be a timing window, where the trace writer would not stop. When I stopped gsksrvr, the trace writer stopped.
