One minute networks: Switches, routers, hubs and IP addresses

This blog post is similar to my posts under “One Minute MVS” which aim to provide basic knowledge to understand a topic.

I struggled to understand some of the networking concepts. There is a lot of documentation on the internet, but it did not cover the basics.

The concepts below are based on Ethernet and physical connections. Other connection types such as wireless can be used just as well, but I find the Ethernet picture simple to understand.

What is a router?

A router is used

  • to convert from one network protocol to another protocol
  • to connect bits of network together.

Broadband router

I have broadband to my house, it comes from my telecom’s provider.

  • There is a broadband protocol for the connection to the telephone exchange, for example it connects using my house phone number, not IP address.
  • It converts from broadband to wireless and Ethernet protocols for my various devices around the house.
  • I can connect my laptop to the router, and connect to other devices around the house, on a different network.

What is a switch?

Think of a self contained office. An Ethernet switch is a box with physical sockets for plugging Ethernet cables into. Each person’s computer has a unique address (known as a MAC). Each computer is connected by an Ethernet cable to a physical port on the Ethernet switch. If your computer wants to send information to another computer in the office it sends a request to the Ethernet switch, saying send this information to this MAC address. The switch knows which physical port matches the MAC, and sends the data down the cable plugged into the physical port.

With the configuration described so far, a computer cannot get to the outside internet.

What is hub?

A hub is a very dumb switch, it sends the incoming data to all devices, it is not smart enough to work out which devices to send the data to. It is used when there are a small number of connections.

Does each device need a unique IP address?

Within a network or sub network, each device needs a unique IP address. My laptop has IP address 192.168.1.1 within my network. My neighbour’s laptop has the same IP address within her network. They are on totally separate networks and do not interact, and so they can each have the same IP address.

Each device connected to the internet needs a unique IP address, so the back-end systems can send the data to your device.

A router can be clever and make each device attached to the internet look like a unique device

  • A server has a fixed IP and port, so client applications can find it.
  • Each time a client machine starts, it can be given a different IP address, and when it connects to a server it can use a different port.
  • The server usually does not care what IP address and port the client uses.

If the IP the address of my laptop is 192.168.1.1, this is an internal address and cannot be used on the internet. My router has external address 7.7.7.1.

The router can do some clever mapping

  • If I try to connect from my laptop source address 192.168.1.1 port 100 to the outside world, the router can change the source address to 7.7.7.1 port 206, so looking like a port on the router.
  • If I try to connect from my laptop address 192.168.1.1 with a different port, 200, to the outside world, the router can change this address to 7.7.7.1 port 209
  • If I try to connect from my server with a different address 192.168.1.16 port 100 to the outside world, the router can change this address to 7.7.7.1 port 208.

As far as the internet is concerned requests have come from address 7.7.7.1 with three different ports. When the replies come back, the router maps them back to the internal addresses and ports. The ports numbers 206, 209 and 208 could have been any free port on the router. Tomorrow I may get different numbers.

What is a router – routing

In my house the broadband is on a cable. This is plugged into a router. My red Ethernet switch is also plugged into the router, and my blue Ethernet switch is plugged into another physical socket on the router.

When data from the internet arrives, there are routing rules which say

  • If the traffic is destined for the red switch, then send it to the red switch.
  • If the traffic is destined for the blue switch, then send it to the blue switch.
  • If the traffic is destined for any of the following list of addresses, send it on the broadband cable.
  • Otherwise send it on the broadband cable.

At the far end of the broadband cable is a telephone exchange. This is different sort of router which says if the traffic is for the phone number 01856…. then send to to my house.

The next level of detail

Each computer in the switch is given an IP address, such as 192.168.22.5, another might be 192.168.22.6, where the last number changes with the different computers.

The router has configuration information saying data for 192.168.22.* send it to the red switch.
The blue Ethernet switch has addresses 10.1.1.*

My router has 3 connections, one for broadband, one for the red switch, and one for the blue switch.

If you physically pick up my switch. All of the Ethernet cables coming out of it are part of a subnet. They all have a similar IP address (192.168.1.*), they are in the same subnet.

My router has the following definitions

  • The physical port to the router, has address 192.168.22.25
  • The physical port to the blue router has address 10.1.1.6
  • The physical port to my broadband router is address 192.168.1.222

The top part of these addresses are all different. They are different subnets.

Router routing

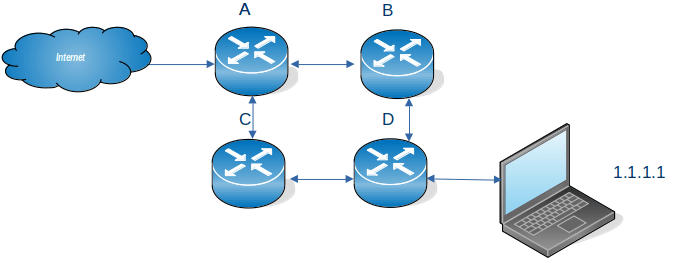

If we have a configuration like

Where internet traffic comes into A for the laptop

For sending data to the laptop with IP address 1.1.1.1, you can configure the network

  • On router A. Send traffic for 1.1.1.* to router B. If B is not available send traffic for 1.1.1.* to router C. This provides dual path, or a backup route.
  • On router B. Send traffic for 1.1.1.* to router D.
  • On router C. Send traffic for 1.1.1.* to router D.

Similarly you can configure router D to say to get to the internet you can go via B or C.

Addresses

You could have a configuration like

Where …

  • the red circle has a laptop connected directly to the router. All of the addresses begin with B. The router end of the connection has an address B.2, where B could be 10.1.1, or 192.168.1 etc
  • the blue circle has an Ethernet switch (SW1) attached to the router. All of the elements have an address A…. where A is different to B. The numbers after A are all different; a laptop with address A.3, a laptop with address A.6, the connection to the router has address A.2, and the router end of the connection has address A.8
  • the green circle is is similar to the blue circle, it uses switch SW2. The value of C is different to A and to B.
  • the yellow circle has the connection to the internet. I is the external address of the router and may be something like 9.8.7.23

Let A be 10.1.1 B be 10.2.2 and C be 10.3.3. I could pick any values as long as A, B and C are different, and different to any addresses on the internet.

Within the routing tables in the router I could have

  • All traffic for the address 10.2.2.9 (B.9), send down 10.2.2.2 (B.2). I could also say any traffic for address starting 10.2.2.* send down 10.2.2.2 (B2).
  • All traffic for the address 10.1.1.* , send down 10.1.1.2 (A.2). This is a range of addresses.
  • All traffic for the address 10.3.3.* , send down 10.3.3.8 (C.2). This is a range of addresses.

If I decide to change 10.2.2.* to 11.2.2.* I have to change all of the laptops and the switch within the blue subnet, and the router’s routing tables to reflect the change.

Technological advances

It used to be that a router and switch were hardware devices. These days many routers are just computers running Linux with lots of Ethernet ports.

Setting up for PING can be difficult!

  • Setting up ping within one machine is trivial
  • Setting up ping between two machines is relatively easy
  • Setting up ping with 3 machines can be hard to get right and to get working.

Most documentation describes how to set up PING between two machines, and does not mention anything more complex.

Ancient history (well 1980’s)

To understand modern TCPIP networks, it helps to know about the origins of Ethernet.

Originally with Ethernet there was a bus; a very long cable. You plugged your computer into this bus. Each computer on the bus had a unique 48 bit MAC address. You could send a request to another computer on this bus using their Ethernet address. You could send a request to ALL computers on this bus. These days this might be, send to all computers:”does anyone have this IP address…?”

An Ethernet bus is connected to an Ethernet router which can route packets to other routers.

Ethernet has evolved and instead of a long bus shared by all users, you have a switch device, and you plug the Ethernet cable from your computer to the switch. Conceptually it is the same, but with the switch you get much better performance and usability. You still have routers to get between different Ethernet environments. The request send to all computers:”does anyone have this IP address…?” goes to the switch, and the switch sends it to all plugged in computers.

When you start TCPIP, it configures the Ethernet hardware adapter with the addresses is should listen for.

Other terminology and concepts

  • A router is a networking device which forwards packets between different networks. Packets of data get sent from the originator through zero or more routers to the final destination.
  • A gateway has several meanings
    • It can connect different network types, for example act as a protocol translator, it can have a built-in firewall
    • It can route IP traffic between different IP subnets
    • It can loosely mean a router

Usually a router or gateway is a dedicated device or hardware.

You can have a computer act as a router or gateway; it takes data from one interface and routes it to a different interface. The computer can pass the data through a fire wall, or transform it, for example converting internal IP addresses to external IP addresses (NAT translation).

At a concept level, a computer’s network adapter is configured only to listen for packets which match the IP addresses of the interface, and ignore the rest.

If you want a computer to act as a router or gateway, you need to configure the network adapter to listen to all traffic, and to process the traffic. This is important when routing traffic from computer A through computer B to computer C.

A simple one hop ping, first time

I have set up my laptop to talk to a server over Ethernet.

I have configured my laptop using

sudo ip -6 addr add 2001:7::/64 dev enp0s31f6

This says for any IP V6 address starting with 2001:0007:0000:0000 then try sending it down the Ethernet cable with interface name enp0s31f6.

Ping a non existing address

If I try to ping an address say 2001:7::99 a packet is sent to all computers on the Ethernet bus

from myipAddress to everyone on the Ethernet bus, does anyone have IP address 2001:7::99?

There is no reply because no computer on the bus, has the address.

Ping the adjacent box

On the server, the IP address of the Ethernet cable is 2001:7::2.

If I ping this address, there are the following flows

From myipAddress (and myMAC) to everyone on the Ethernet bus, does anyone have IP address 2001:7::2?
From 2001:7::2 to myipAddress (MAC), yes I have that IP address. My Ethernet MAC address is …

My laptop puts the remote IP address and its MAC address into its neighbour cache, then issues the ping request.

The ping request looks in the neighbour cache find the IP address and MAC address and issues.

From myipAddress to 2001:7::2 at macAddress .. ping request.

The second and later times I issue a ping

The ping request looks in the neighbour cache find the IP address and MAC address and issues the ping

From myipAddress to 2001:7::2 at macAddress .. ping request.

So while the neighbour cache still has the IP of the target, and it’s MAC address, the ping can be routed to the next hop.

Setting up a multi hop ping

I have my laptop connected via a physical Ethernet cable to my server. The server is connected to z/OS via a virtual Ethernet connection. The IP address of the z/OS end of the virtual Ethernet cable is 2001:7::4.

The ping 2001:7::4 request on my laptop, does not work (as we saw above), because TCP asked everyone on the Ethernet bus if it has address 2001:7::4 – and no machine replies.

You need to define the link to the server machine as a gateway or router-like device which can handle IP addresses which are not on the Ethernet bus. You define it like

sudo ip -6 route add 2001:7::/64 via 2001:7::2

This says for any traffic with IP address 2001:0007:0000:0000:* send it via address 2001:7::2.

This requires 2001:7::2 to be known about, and so needs the following to be configured first

sudo ip -6 route add 2001:7::2 dev enp0s31f6

for TCPIP to know where to send the traffic to.

The route add 2001:7::2 dev enp0s31f6 command sends a broadcast on the Ethernet bus asking – does anyone have 2001:7::2. My server replies saying yes I have it. This is the same as for the ping above.

In summary

To send traffic on the same Ethernet bus you use

sudo ip -6 route add 2001:7::2 dev enp0s31f6

To route it via a router, switch, or computer acting as a router or switch you need.

sudo ip -6 route add 2001:7::/64 via 2001:7::2 or
sudo ip -6 route add 2001:7::/64 via 2001:7::2 <dev enp0s31f6>

The computer acting as a router or switch may need additional configuration. For example to allow it to route traffic from one Ethernet bus to another Ethernet bus you need to enable packet forwarding. On Linux to enable forwarding for all interfaces use

sysctl -w net.ipv6.conf.all.forwarding=1

On z/OS you use a static route such as

ROUTE 2001:7::/64 2001:7::3 JFPORTCP6

Where 2001:7::/64 is the range of addresses 2001:7::3 is (one of) the addresses of the interface at the remote end of the cabl, and JFPORTCP6 is the interface name. This is similar to the Linux route statement above.

You might need to set up the firewall. On my server I needed

sudo ufw route allow in on eno1 out on tap2

What IP Address does the sender have?

This is where is starts to get more complex.

Every network connection has at least one IP address.

With IP V6

  • Each interface gets an “internal” IP address such as fe80::9b07:33a1:aa30:e272
  • You can allocate an external address using the Linux command sudo ip -6 addr add 2001:7::1 dev enp0s31f6
  • If the interface has one external IP address configured, then this will be used.
  • If the interface has more than one external address configured then the first in the list may be used (not always).
  • If the interface does not have an external IP address, then TCPIP will find one from another interface, or allocate one for the duration of the request, such as 2a00:23c5:978f:9999:210a:1e9b:94a4:c8e. This address comes from my wireless connection

When my laptop is started, only the wireless connection has an IPV6 address. A ping request to 2001:7::4 had the origin IP address of 2a00:23c5:978f:9999:210a:1e9b:94a4:c8e which is the first address in the list for the wireless connection.

You can tell ping which address to use, for example

ping -I 2a00:23c5:978f:9999:cff1:dc13:4fc6:f21b 2007:1::4 (this fails because the server does now know to send the response to the requester)

I defined a new address for the interface using

sudo ip -6 addr rep 2002:7::1 dev enp0s31f6

I could issue ping -I 2002:7::1 2001:7::4, but this failed to get a response, because the back-end and intermediate nodes, did not know how to get the response back to 2002:7::1

Does this sender address matter?

Yes, because the remote end needs to have a definition to be able to send the response back.

I had my laptop connected to a Linux server over Ethernet, which in turn was connected to z/OS over a virtual Ethernet.

On z/OS I could see the ping request arrive, but it could not send the response back because it did not know how to get to 2a00:23c5:978f:9999….

I configured the laptop end of the Ethernet to give it an IP address 2001:7::1

sudo ip -6 addr add 2001:7::1/64 dev enp0s31f6

I configured the server to laptop to have an IP address of 2001:7::2

sudo ip -6 route add 2001:7::1/128 dev eno1

I configured the server to z/OS with an IP address and a route

sudo ip -6 addr add 2001:7::3/128 dev tap2
sudo ip -6 route add 2001:7::4/128 dev tap2

Now when I did the ping, the originator was 2001:7::1.

I configured the z/OS interface to send stuff back

INTERFACE JFPORTCP6
    DEFINE IPAQENET6
    CHPIDTYPE OSD
    PORTNAME PORTC

INTERFACE JFPORTCP6
    ADDADDR 2001:DB8:8::9
INTERFACE JFPORTCP6
    ADDADDR 2001:DB8::9
INTERFACE JFPORTCP6
    ADDADDR 2001:7::4
START JFPORTCP6

and the routing

BEGINRoutes
;     Destination      Gateway                 LinkName  Size
ROUTE 2001:7::/64      2001:7::3              JFPORTCP6   MTU 5000
...
ENDRoutes

This says that all traffic with destination address 2001:0007:0000:000…. send to interface JFPORTCP6. This interface is connected to a gateway with the address of the remote end of the Ethernet (so on the server) of 2001:7::3.

The server machine needs to act as a router between the different Ethernet buses. You can display and configure this using

sysctl -a |grep forwarding
sudo sysctl -w net.ipv6.conf.all.forwarding=1

Packet forwarding on z/OS

By default the z/OS interface only listens for packets with one of the IP addresses of the interface. For z/OS to be able to be a router; accept all packets, and route them to other interfaces you need:

  • IPCONFIG DATAGRAMFWD in the TCP/IP Profile
  • PRIROUTER on the Interface definition . This configures the Ethernet adapter (hardware) so If a datagram is received at this device for an unknown IP address, the datagram is routed to this TCP/IP instance.

But normally if you are running z/OS you use a cheaper, physical router, rather than use the z/OS to do your routing. It might only be people like me who run z/OS on their laptop who want to try routing through z/OS.
