Why can’t java use my key ring?

I had a problem with z/OSMF. I configured it to use an exiting keyring, but it consistently refused to use it. I had messages like

[WARNING ] CWPKI0809W: There is a failure loading the defaultKeyStore keystore. If an SSL configuration references the defaultKeyStore keystore, then the SSL configuration will fail to initialize.

This blog post covers how I debugged this situation.

What seemed strange was this only occurred when an Elliptic Curve certificate was being used – and not an RSA certificate.

Even more curiouser was the documentation mentioned access to the <ringOwner>.<ringName>.LST resource in the RDATALIB class. See here. I didn’t have this defined and yet RSA certificates would work! So curiouser and curiouser (or for the people who like correct grammar, curiouser and more curiouser).

All applications needing access to certificates and private keys use the R_datalib callable service.

The bottom line

  • z/OSMF has userid IZUSVR
  • I had a keyring and used two certificates
    • An RSA certificate, CCPKeyring.IZUDFLT, belonging to userid IZUSVR – based on the sample JCL provided by z/OSMF
    • An existing Elliptic Curve certificate NISTEC224 belonging to userid COLIN. This works else where.
  • Without <ringOwner>.<ringName>.LST defined the class(RDATALIB) the RSA certificate worked
  • Without <ringOwner>.<ringName>.LST defined the class(RDATALIB) the Elliptic Curve certificate failed
  • Once I found the problem I defined <ringOwner>.<ringName>.LST in class(RDATALIB), and gave the userid IZUSVR Update access to it – and the Elliptic curve worked
  • The reasons (being wise after the event)
    • R_datalib checks access on one profile in the RDATALIB class first – <ringowner>.<ringname>.LST. If there is none, it will fall back to check on two profiles in the FACILITY class – IRR.DIGTCERT.LISTRING and IRR.DIGTCERT.GENCERT. If the certificate is not owned by the accessing ID (except CERTAUTH or SITE), RDATALIB class has to be used for private key access.
    • This is true for the RSA certificate, used the IRRDIGTCERT.LISTRING class(FACILITY) and had access. So this worked.
    • For the Elliptic Curve, the caller’s userid (IZUSVR) is not the associated with the certificate (COLIN) so this fails, and the logic drops through to the RDATALIB checking.
    • The caller’s user ID has READ or UPDATE authority to the ..LST resource in the RDATALIB class. READ access enables retrieving one’s own private key, UPDATE access enables retrieving other’s. The ring did not exist, and so this access was not given.

How did I debug this? – Using Java trace

Adding configuration to z/OSMF

I copied /global/zosmf/configuration/local_override.cfg to /global/zosmf/configuration/local_override.colin

I edited/global/zosmf/configuration/local_override.cfg and changes the JVM options line to

JVM_OPTIONS=”-Xoptionsfile=’/global/zosmf/configuration/local_override.colin'”

I edited the local_override.colin, deleted all but the JVM options line, then split the line at \n so it looks like

-Dcom.ibm.ws.classloading.tcclLockWaitTimeMillis=300000
-Xscmx150M
-Xquickstart

Add debug information to the configuraton file

I added

-Djava.security.auth.debug=pkcs11keystore
-Dlog.level=Error

The output

[err] Jan 17, 2025 8:18:52 AM com.ibm.crypto.ibmjcehybrid.provider.HybridRACFKeyStore engineLoad
TRACE: Loading keyring CCPKeyring.IZUDFLT as a JCECCARACFKS type keystore.
...
[err] Jan 17, 2025 8:19:02 AM com.ibm.crypto.hdwrCCA.provider.RACFInputStream getEntry
FINER: The private key of NISTEC224 is not available or no authority to access the private key
[err] Jan 17, 2025 8:19:02 AM com.ibm.crypto.ibmjcehybrid.provider.HybridRACFKeyStore engineLoad
TRACE: Error loading and storing certificates and key material from underlying JCECCARACFKS keyring CCPKeyring.IZUDFLT
java.io.IOException: The private key of NISTEC224 is not available or no authority to access the private key . This can be expected if the IBMJCECCA is not setup correctly or
ICSF is down. Will now attempt to load the keyring as a JCERACFKS keyring.

Which is not a very helpful message.

How did I debug this? – Using RACF trace

R_datalib is the callable service to ALL the exploiters which need access to a RACF keyring (certificates and private keys). It is r_datalib or its alias irrsdl00 with callable type number 41.

Enable the RACF trace

#SET TRACE(CALLABLE(TYPE(41))JOBNAME(IZU*))

Start GTF

S GTF.GTF,M=GTFRACF

This reported

IEF403I GTF - STARTED - TIME=08.17.03
IEF188I PROBLEM PROGRAM ATTRIBUTES ASSIGNED
AHL121I  TRACE OPTION INPUT INDICATED FROM MEMBER GTFRACF  OF PDS
USER.Z24C.PROCLIB
TRACE=USRP
USR=(F44)
END
AHL103I  TRACE OPTIONS SELECTED --USR=(F44)
AHL906I THE OUTPUT BLOCK SIZE OF    27998 WILL BE USED FOR OUTPUT 702
        DATA SETS:
          SYS1.TRACE

I started z/OSMF until it failed.

Stop GTF

p GTF
AHL006I GTF ACKNOWLEDGES STOP COMMAND
AHL904I THE FOLLOWING TRACE DATASETS CONTAIN TRACE DATA :
          SYS1.TRACE

Use IPCS to look at the dump, using command GTF USR(ALL). Go to the bottom of the output, use the command report view. This gives an ISPF edit session.

  • x all
  • f ‘RACF Reason code:’ all
    • You are interested in the non zero codes. “Label” each line of interest using the line prefix command .a, .b etc.
  • reset
  • loc .a
    • This will position you by the labelled line. Look up the RACF return and reason codes here. I had Reason Code 2c, which is decimal 44. Look for the keyring, or other information. I do not know which data tells you which sub operation r_datalib was doing, but for me it had the keyring name “CCPKeyring.IZUDFLT “. The description in the reason code documentation does not cover the situation of not having update access to the keyring, so I’ve raised a doc comment on it.

What’s hammering my Linux Ethernet and how do I stop it?

I was downloading some stuff on one machine, and noticed that my Ethernet connection had a very high throughput – but it was doing nothing useful. This blog post gives some of the things I did to identify and resolve the problem.

Mount the file system

I used the command

sshfs colin@10.1.0.3:/home/zPDT/ ~/mountpoint

to mount the file system from 10.1.03 on my local machine.

Identify the problem

I used the Linux command nload to show the network activity.

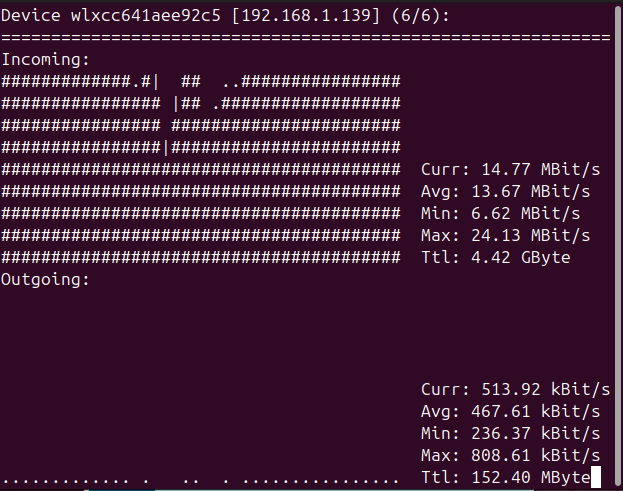

For my wireless link (downloading a big file) the output was

I cannot currently reproduce the sustained Ethernet usage problem.

Wireshark showed my a lot of activity for SSH from port 55401 to port 22.

If you do not have access to Wireshark, the following command show all the socket activity which may help.

ss -t -a -i -O |grep delivery|awk '{print $4,$5, " ", $30,$31 }'

To find the owner of port 55401 I used the show socket command

ss -p |grep 55104
tcp ESTAB 0 0 10.1.0.2:55104 10.1.0.3:ssh users:(("ssh",pid=7258,fd=3))

This gave me the process id of the owner of the port. The ps command gives more information

ps -ef |grep 7258
colinpa+    7258 ... ssh -x -a -oClearAllForwardings=yes -2 colin@10.1.0.3 -s sftp

Showing the sftp to 10.1.0.3.

How to stop the sftp?

The documentation for sshfs says use the fusermount3 command.

$fusermount3 -u ~/mountpoint
fusermount3: failed to unmount /home/colinpaice/mountpoint: Device or resource busy

I needed to use the lazy unmount option -z

 fusermount3 -z  -u ~/mountpoint

and this successfully unmounted the remote file system

Chaff

I found out that information can be obtained from the profile of key strokes, and so chaff has been added to the SSH flow.

I fixed it by using setting ObscureKeystrokeTiming no in /etc/ssh/ssh_config. The documentation says

Specifies whether ssh(1) should try to obscure inter-keystroke timings from passive observers of network traffic. If enabled, then for interactive sessions, ssh(1) will send keystrokes at fixed intervals of a few tens of milliseconds and will send fake keystroke packets for some time after typing ceases. The argument to this keyword must be yes, no or an interval specifier of the form interval:milliseconds (e.g. interval:80 for 80 milliseconds). The default is to obscure keystrokes using a 20ms packet interval. Note that smaller intervals will result in higher fake keystroke packet rates.

Whoops I just used the wrong 3270 window.

For my z/OS system, I have multiple 3270 session. For example one has an all powerful userid, one has my normal userid, and one has a userid with no authority. I usually position them left to right so it is obvious which session I am using.

I recently had an incident where I disconnected my external monitor, used z/OS, then reconnected my external monitor. The 3270 sessions were not in their usual places, and I used the right hand session to do something, to find I was using the all powerful userid.

I’ve now fixed this by using

x3270 -model 5 -bd red tso@localhost:3270 &

where -bd red says give the window a red border. Of course if I do not look at the border, it will not help – but I hope it will.

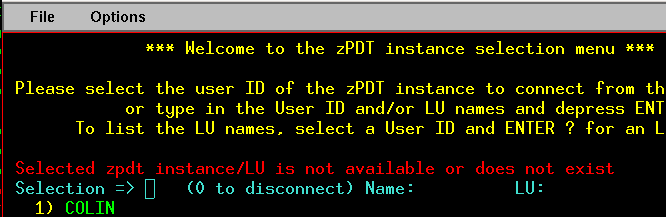

My session now looks like

If you display the x3270 options, you will not find -bd mentioned. x3270 uses some of xterm, which has options which include:

  • -bd color This option specifies the color to use for the border of the window. The default is “black.”
  • -bg color This option specifies the color to use for the background of the window. The default is “white.”
  • -bw number This option specifies the width in pixels of the border surrounding the window.
  • -fg color This option specifies the color to use for displaying text. The default is “black.”
  • -fn font This option specifies the font to be used for displaying normal text. The default is fixed.
  • -name name This option specifies the application name under which resources are to be obtained, rather than the default executable file name. Name should not contain “.” or “*” characters.
  • -rv This option indicates that reverse video should be simulated by swapping the foreground and background colors.
  • +rv Disable the simulation of reverse video by swapping foreground and background colors.
  • -title string This option specifies the window title string, which may be displayed by window managers if the user so chooses. The default title is the command line specified after the -e option, if any, otherwise the application name.

Using and debugging RACF CLASS(APPL) and pthread_security_np

I’ve blogged I want to be someone else – or using pthread_security_np, how a server can be passed a userid or password to logon to a server to do some work. For example I was logging on from a web server to the RMF GPMSERVE for displaying RMF reports in a a web browser.

I had followed the documentation, but all my userids had access, when none of them should have done. This blog post covers the steps I used to dig into this.

The RACF calls used, have a flag set “Suppress any RACF Messages”, which makes it harder to diagnose problems.

With most RACF calls you can define a profile

ADDSD 'COLIN.PROT.DATASET' UACC(NONE) WARNING

where the WARNING option says “If the userid does not have access – give the userid access, but write a message on the console”. This allows you to find when you need to grant access. Once the profile is established, you can use the ALTSD … NOWARNING. Userids requesting access, but which are not permitted will now fail.

Defining a profile with CLASS(APPL), the warning has no effect. I had to use NOTIFY(COLIN) to get notified of problems.

Tracing the requests

To trace all of the RACF calls made by my job COLINNT I issued

#set trace(callable(all),racroute(all),jobname(COLINNT))

This gave me many hundreds of calls.

Once I had been through the whole process, I found the trace for the pthread_security_np etc calls was just

set trace(callable(type(38)),jobname(COLINNT))

Collect a trace

See Collecting and understanding a RACF GTF trace output.

Looking at the trace output

There is a trace record “before” (PRE) matching “after” (POST). Many parameters are the same (as you might expect).

The output of these traces is verbose, with unnecessary information and with extra blanks lines. For example for one parameter

   Area length:                  00000008

   Area value:
   D6C6C6E2  C5E30000                                | OFFSET..                         |

   Area length:                  00000004

   Area value:
   00000000                                         | ....                             |

   Area length:                  00000008

In the description below, I’ve squashed this down to a single line

area length  8  OFFSET0000 length 4 00000000

It looks like the field OFFSET0000 has the offset in hex from somewhere. I didn’t find this information useful.

A compressed trace record is given below. For the interpretation of the fields see the following trace record.

RTRACE
OMVSPRE
Service number 00000026
Parameters
area length x6c
area length  8  OFFSET0000 length 4 00000000
area length  8  OFFSET0004 length 4 00000000
area length  8  OFFSET0008 length 4 00000000
area length  8  OFFSET000C length 4 00000000
area length  8  OFFSET0010 length 4 40404040
area length  8  OFFSET0014 length 4 00000000
area length  8  OFFSET0018 length 4 40404040
area length  8  OFFSET001C length 1 01
area length  8  OFFSET0020 length 4 C4800000
area length  8  OFFSET0024 length 6 05c1c2c3c4C2 =  .ABCDB
area length  8  OFFSET0028 length 4 00000000
area length  8  OFFSET002C length 9 08C7D7D4  E2C5D9E5  C5   = .GPMSERVE
Internal information
area length  8  OFFSET0034 length x37 = "Server Userid=IBMUSER created a full ACEE"
area length  8  OFFSET0048 length 4 00000000
area length  8  OFFSET0050 length 9 08000000  00000000  00
area length  8  OFFSET0054 length 1 00
area length  8  OFFSET0018 length 4 40404040
Internal data
area length xc0 ACEE
area length x50 userid information
area length x90 ACEX
area length x50 USP

hex dump of record

The RACF commands documentation says for a callable service, 0x00000026 is function number for IRRSIA00. This page gives the name of the function name IRRSIA00 and the description z/OS kernel on behalf of servers that use pthread_security_np servers or __login, or MVS servers that do not use z/OS UNIX services.

The parameters are for the initACEE (IRRSIA00) call.

The matching “after” record, OMVSPOST was (with the parameters of the the IRRSIA00 call format, parameters) are

RTRACE
OMVSPOST
Service number:               00000026
RACF Return code:             00000008
RACF Reason code:             00000020
Parameters
area length  8  OFFSET0000 length 4 00000000 >work_area<
area length  8  OFFSET0004 length 4 00000000 >ALET<
area length  8  OFFSET0008 length 4 00000008 >SAF_return_code<
area length  8  OFFSET000C length 4 00000000 >ALET<
area length  8  OFFSET0010 length 4 00000008 >RACF_return_code<
area length  8  OFFSET0014 length 4 00000000 >ALET<
area length  8  OFFSET0018 length 4 00000020 >RACF_reason_code<
area length  8  OFFSET001C length 1 01       >Function_code 1 = Create an ACEE<
area length  8  OFFSET0020 length 4 C4800000 >Attributes - see below<
area length  8  OFFSET0024 length 6 05c1c2c3c4C2  >Userid .ABCDB<
area length  8  OFFSET0028 length 4 00000000 >ACEE_pointer<
area length  8  OFFSET002C length 9 08C7D7D4  E2C5D9E5  C5  >APPLID = .GPMSERVE<
Internal information
area length  8  OFFSET0034 length x37 = "Server Userid=IBMUSER created a full ACEE"
area length  8  OFFSET0048 length 4 00000000
area length  8  OFFSET0050 length 9 08000000  00000000  00
area length  8  OFFSET0054 length 1 00
area length  8  OFFSET0018 length 4 40404040
Internal data
area length xc0 ACEE
area length x50 userid information
area length x90 ACEX
area length x50 USP

There the attributes C480000 mean

  • X80000000 – Create the ACEE
  • X40000000 – Createthe USP for the userid
  • X04000000 – Suppress any RACF Messages
  • X00800000 – Return an OUSP in the output area

Note the flag:X04000000 – Suppress any RACF Messages.

The return code

area length  8  OFFSET0008 length 4 00000008 >SAF_return_code<
...
area length  8  OFFSET0010 length 4 00000008 >RACF_return_code<
area length  8  OFFSET0014 length 4 00000000 >ALET<
area length  8  OFFSET0018 length 4 00000020 >RACF_reason_code<

8,8,32 means The user does not have appropriate RACF access to either the SECLABEL, SERVAUTH profile, or APPL specified in the parmlist.

For other RACF services the trace entries follow a similar format.

Python how do I convert a STCK to readable time stamp?

As part of writing a GTF trace formatter in Python I needed to covert a STCK value to a printable value. I could do it in C – but I did not find a Python equivalent.

from datetime import datetime
# Pass in a 8 bytes value
def stck(value):
    value = int.from_bytes(value)
    t = value/4096 #  remove the bottom 12 bits to get value in micro seconds
    tsm = (t /1000000 ) -  2208988800 # // number of seconds from Jan 1 1970 as float
    ts = datetime.fromtimestamp(tsm) # create the timestamp
    print("TS",tsm,ts.isoformat()) # format it

it produced

TS 1735804391.575975 2025-01-02T07:53:11.575975

Tracing encrypted data to z/OS

I had blogged Collecting a wire-shark trace with TLS active for a browser where you could specify an environment variable export SSLKEYLOGFILE=$HOME/sslkeylog.log. OpenSSL would write the key to this file, and Wireshark could decrypt the traffic using this data.

Unfortunately this only worked with RSA keys. I could not get it to work with modern Elliptic Curve keys.

I’ve updated my zWireshark program to capture AT-TLS application data in clear text from the z/OS side. It uses an IBM provided API, and captures the traffic between AT-TLS and the application.

You need to set up security profiles, for example

permit  EZB.TRCSEC.*.*.ATTLS            -
   CL(SERVAUTH) id(ADCDB) access(READ)
permit  EZB.TRCCTL.S0W1.TCPIP.DATTRACE  -
   CL(SERVAUTH) id(ADCDB) access(READ)
permit EZB.TRCCTL.S0W1.TCPIP.OPEN  -
   CL(SERVAUTH) id(ADCDB) access(READ)
permit EZB.TRCCTL.*.*.* CL(SERVAUTH) id(ADCDB) access(READ)
SETROPTS RACLIST(SERVAUTH) refresh

and change the AT-TLS configuration to include CtraceClearText On

For my web browser traffic it produced (printed with the ASCII switch)

Data trace.  Data length 345.  ATTLS Clear Text.
<GPMSERVE  11:01:57.258946 Src 10.1.1.2 Port 8803 Dst 10.1.0.2 Port 45168
Warning: 199 RMF-DDS-Server SeverityCode(03) Data(0)
Content-Location: perform_20250102110157_20250102110157.xml
Cache-Control: max-age=30
Date: Thu, 02 Jan 2025 11:01:57 GMT
Connection: close
Content-Length: 1468
Content-Type: application/xml
X-UA-Compatible: IE=edge
X-Content-Type-Options: nosniff
X-XSS-Protection: 1; mode=block

When the AT-TLS option CtraceClearText was Off, the output was

Data trace.  Data length 0.  PTH_Flag.Confidential.
<GPMSERVE  11:27:48.733616 Src 10.1.1.2 Port 8803 Dst 10.1.0.2 Port 52860

So no confidential data was displayed.

The JCL is

//COLINC5    JOB 1,MSGCLASS=H,COND=(4,LE)
// SET LOADLIB=COLIN.ZWIRESHA.LOAD
//RUN      EXEC PGM=TCPDATA,REGION=0M,PARMDD=MYPARMS
//STEPLIB  DD DISP=SHR,DSN=&LOADLIB
//SYSPRINT DD SYSOUT=*,DCB=(LRECL=200)
//SYSOUT   DD SYSOUT=*
//SYSERR   DD SYSOUT=*
//* MYPARMS needs a / to split LE parms from program parms
//*         needs a blank before each parm, because trailing blanks removed
//MYPARMS DD *
/
 --IP   10.1.0.2
 --WAIT 60
 --DEBUG 0
 --DISCARD 1
 --PRINT A
/*

Please let me know of any problems or suggestions

Collecting and understanding a RACF GTF trace output

A RACF request can be

  • A callable service, such as IRRSDL00 which is used to extract information about keyrings. This can be used by High Level Languages. These have a trace type of OMVS
  • A RACROUTE request, an assembler macro interface, such as FASTAUTH. These have a trace type of RACF.

You get a trace entry PRE the call, and and a trace entry POST the call. A callable service would have an OMVSPRE, and an OMVSPOST entry.

When setting up your RACF trace you need to define which callable service, or which RACROUTE requests you want to trace.

Example of a callable server

Entry trace

Trace Identifier:             00000036
Record Eyecatcher:            RTRACE
Trace Type:                   OMVSPRE
Ending Sequence:              ........
Calling address:              00000000  20801A0F
Requestor/Subsystem:          ........  ........
Primary jobname:              IBMINC5
Primary asid:                 00000029
Primary ACEEP:                00000000  008FA8A8
Home jobname:                 IBMINC5
Home asid:                    00000029
Home ACEEP:                   00000000  008FA8A8
Task address:                 00000000  008D6A88
Task ACEEP:                   00000000  00000000
Time:                         DFF36A27  5460CC00
Error class:                  ........
Service number:               00000029
RACF Return code:             00000000
RACF Reason code:             01000000
Return area address:          00000000  00000000
Parameter count:              00000021

Interesting information

  • Trace Type: OMVSPRE this is an entry trace
  • Primary jobname: IBMINC5
  • Home jobname: IBMINC5
  • The RACF return and reason code have no meaning on entry
  • Service number: 00000029 is hex so the service is 41. The RACF commands documentation says for a callable service, 41 is function number IRRSDL00.

Exit trace

Trace Identifier:             00000036
Record Eyecatcher:            RTRACE
Trace Type:                   OMVSPOST
Ending Sequence:              ........
Calling address:              00000000  20801A0F
Requestor/Subsystem:          ........  ........
Primary jobname:              IBMINC5
Primary asid:                 00000029
Primary ACEEP:                00000000  008FA8A8
Home jobname:                 IBMINC5
Home asid:                    00000029
Home ACEEP:                   00000000  008FA8A8
Task address:                 00000000  008D6A88
Task ACEEP:                   00000000  00000000
Time:                         DFF36A27  5468DC40
Error class:                  ........
Service number:               00000029
RACF Return code:             00000008
RACF Reason code:             00000014
Return area address:          00000000  00000000
Parameter count:              00000021

Interesting fields

  • Trace Type: OMVSPOST this is the exit trace
  • As above service number 41 is function
  • The RACF Return code is 8
  • The RACF reason code is 14

Example of a RACROUTE trace

Entry

Trace Identifier:             00000036
Record Eyecatcher:            RTRACE
Trace Type:                   RACFPRE
Ending Sequence:              ........
Calling address:              00000000  A096A08A
Requestor/Subsystem:          CRYPTO    CRYPTO
Primary jobname:              CSF
Primary asid:                 00000038
Primary ACEEP:                00000000  008F6B98
Home jobname:                 IBMEXP
Home asid:                    00000029
Home ACEEP:                   00000000  008FA8A8
Task address:                 00000000  008D6A88
Task ACEEP:                   00000000  00000000
Time:                         DFF37DD1  AB7FF040
Error class:                  ........
Service number:               00000002
RACF Return code:             00000000
RACF Reason code:             00000000
Return area address:          00000000  00000000
Parameter count:              00000009

This trace entry was from a batch job IBMEXP, using an ICSF service to access an encryption key.

Interesting fields

  • RACFPRE this is a RACROUTE before entry
  • Requestor/Subsystem: CRYPTO which z/OS component
  • Primary jobname: CSF This was the address space which issued the RACROUTE request
  • Home jobname: IBMEXP This was the job requesting an ICSF service
  • Service number: 2. The RACF commands documentation says for a RACROUTE service, 2 is FASTAUTH
  • Ignore RACF return and RACF reason codes. They are set on exit,

Exit

Trace Identifier:             00000036
Record Eyecatcher:            RTRACE
Trace Type:                   RACFPOST
Ending Sequence:              ........
Calling address:              00000000  A096A08A
Requestor/Subsystem:          CRYPTO    CRYPTO
Primary jobname:              CSF
Primary asid:                 00000038
Primary ACEEP:                00000000  008F6B98
Home jobname:                 IBMEXP
Home asid:                    00000029
Home ACEEP:                   00000000  008FA8A8
Task address:                 00000000  008D6A88
Task ACEEP:                   00000000  00000000
Time:                         DFF37DD1  AB85DE40
Error class:                  ........
Service number:               00000002
RACF Return code:             00000008
RACF Reason code:             00000000
Return area address:          00000000  00000000
Parameter count:              00000009

This trace entry was from a batch job IBMEXP, using an ICSF service to access an encryption key.

Interesting fields

  • RACFPOST this is a RACROUTE after exit entry
  • Requestor/Subsystem: CRYPTO which z/OS component
  • Primary jobname: CSF This was the address space which issued the RACROUTE request
  • Home jobname: IBMEXP This was the job requesting an ICSF service
  • Service number: 2. The RACF commands documentation says for a RACFROUTE service, 2 is FASTAUTH
  • RACF Return code: 00000008, RACF Reason code: 00000000 This shows there was a problem. The documentation for FASTAUTH shows
    • RC=8 -> the user or group is not authorized to use the resource.
    • RS=0 -> The invoker does not need to log the request.

The RACF trace command for this was

#SET TRACE(JOBNAME(csf),callable(none),RACROUTE(type(2)))

and the following commands

S GTF.GTF
R 1,trace=usrp
R 2,USR=(F44)
R 3,END
R 4,U

Fast start GTF

I can use

S GTF.GTF,M=GTFRACF

Where my GTF proc has

//GTFNEW  PROC M=GTFPARM,ID=SYS1
//DELETE  EXEC PGM=IEFBR14
//IEFRDER DD   DSNAME=&ID..TRACE,UNIT=SYSDA,SPACE=(TRK,20),
//             DISP=(MOD,DELETE)
//IEFPROC EXEC PGM=AHLGTF,PARM='MODE=EXT,DEBUG=NO,TIME=YES,NP',
//  TIME=1440,REGION=2880K
//IEFRDER DD   DSNAME=&ID..TRACE,UNIT=SYSDA,SPACE=(TRK,20),
//             DISP=(NEW,KEEP)
//SYSLIB  DD   DSNAME=USER.Z24C.PROCLIB(&M),DISP=SHR

I have a member in USER.Z24C.PROCLIB(GTFRACF)

TRACE=USRP
USR=(F44)
END

I want to be someone else – or using pthread_security_np

There are times when you are running a job, and you want to do some work as a different userid.

You can configure a userid so it acts as a surrogate – I can submit jobs with your userid, without knowing your password.

You can have a server and have a thread within the server run as different userid by specifying a userid and password, using the pthread_security_applid_np function. You can also have it logon using a certificate, and it looks up the userid from the certificate.

You can extend/restrict this by specifying an RACF APPL which the user must have access to.

RDEFINE APPL YYYY
PERMIT  CLASS(APPL) YYYY ID(COLIN) ACCESS(READ)
SETROPTS RACLIST(appl ) REFRESH

My job running with userid IBMUSER specifies a userid COLIN, and COLIN’s password. If applid YYYY is specified, userid COLIN must have read access to the YYYY in CLASS(APPL).

If you use pthread_security_np() is the same as pthread_security_applid_np() and uses the default OMVSAPPL.

My example C program is

Main

int main( int argc, char *argv[])
{
  pthread_t thid;
  int rc;
  void *ret;
  if (pthread_create(&thid, NULL, thread, "thread 1") != 0) {
    perror("pthread_create() error");
    exit(1);
  }
  rc =pthread_join(thid, &ret);
  printf("Pthread join %d\n",rc);
  if (rc  != 0) {
 // perror("pthread_create() error");
 // return(3);
  }
  printf("thread exited with '%s'\n", ret);
  return 0  ;
}

  #pragma runopts(POSIX(ON))
  /*Include standard libraries */
  #include <stdio.h>
  #include <stdlib.h>
  #include <string.h>
  #include <stdarg.h>
  #include <errno.h>
  #define _OPEN_SYS 1
  #include <pthread.h>

  void *thread(void *arg) {
  char *ret = "";
  int rc;
  printf("thread() entered with argument '%s'\n", arg);
  rc = pthread_security_applid_np(__CREATE_SECURITY_ENV,
              __USERID_IDENTITY,
              5,
              "COLIN",
              "PASSW0RD",
              0,"AAAA");
  perror("perror");
  printf("colin rc = %d errno %d\n",rc,errno);
  if (rc == 0)
  {
     FILE * f2  ;
     f2 = fopen("DD:TEST","r                      ") ;
     printf("DD:TEST  %d\n",f2);
   }
  pthread_exit(ret);
  }



int main( int argc, char *argv[])
{
  pthread_t thid;
  int rc;
  void *ret;
  if (pthread_create(&thid, NULL, thread, "thread 1") != 0) {
    perror("pthread_create() error");
    exit(1);
  }
  rc =pthread_join(thid, &ret);
  printf("Pthread join %d\n",rc);
  if (rc  != 0) {
    perror("pthread_create() error");
   return(3);
  }
  printf("thread exited with '%s'\n", ret);
  return 0  ;
}

When the above program ran it gave me

ICH408I USER(COLIN   ) GROUP(SYS1    ) NAME(COLIN PAICE         )
  IBMUSER.TRY.PEM CL(DATASET ) VOL(C4USR1)
  INSUFFICIENT ACCESS AUTHORITY
  ACCESS INTENT(READ   )  ACCESS ALLOWED(NONE   )

which shows that the userid COLIN was used.

EDC5167I Access to the UNIX System Services version of the C RTL is denied. (errno2=0xC10F0001 C10F0001) .

You cannot use the pthread_security… functions in the main thread. You have to attach a subtask using pthread_create().

EDC5143I No such process. (errno2=0x0BE80000 0BE80000)

Invalid userid specified.

EDC5111I Permission denied. (errno2=0x0BE80000 0BE80000)
Invalid password.

EDC5163I SAF/RACF extract error. (errno2=0x0BE8081C 0BE8081C)

Revoked userid.

EDC5168I Password has expired. (errno2=0x0BE80000 0BE80000)

Obvious.

EDC5163I SAF/RACF extract error. (errno2=0x0BE80820 0BE80820)

No OMVS segment, or the new user does not have access to the specified applid class.

rc = pthread_security_np() defaults to pthread_security_applid_np() with an applid of OMVSAPPL

ICH70004I
ATTEMPTED 'READ' ACCESS OF USER(ADCDE) GROUP(TEST) NAME(ADCDE) ENTITY 'OMVSAPPL' IN CLASS 'APPL'

EDC5139I Operation not permitted. (errno2=0x0BE802AF 0BE802AF)

ICH420I PROGRAM CERT FROM LIBRARY COLIN.LOAD CAUSED THE ENVIRONMENT TO
BECOME UNCONTROLLED.
BPXP014I ENVIRONMENT MUST BE CONTROLLED FOR SERVER (BPX.SERVER)
PROCESSING.

Needed

RALTER PROGRAM CERT ADDMEM('COLIN.LOAD'//NOPADCHK)
SETROPTS WHEN(PROGRAM) REFRESH
