My Unix Services shell is yucky – how do I change it?

You can get into Unix Services from TSO OMVS, or you can use SSH to get directly into a Unix Services session (without access to ISPF). I was interested in using SSH. At first glance it works just like a Linux command window.

My first experience was the keys did not behave as I expected, and how can I change this.

Why do I care which shell I am using?

On Linux I can type the first part of a file name, press the tab key, and it either completes the name of the file (if there was only one) or lists the names of the possible matching files. This is known as autocomplete.

I tried this in an SSH session on z/OS, and this did not work. I was using the default shell, which does not have this support. I needed to use the bash shell or the zsh shell. Note the zsh was developed on Unix and ported to z/OS, it is not a z/OS special.

How do I use a different shell?

The first question is, “is the shell available on my system?”, to which the answer is maybe.

  • z/OS ships with the default shell in /bin/sh.
  • You can get a free version of bash for z/OS. My ADCD based system does not have Bash pre-installed. I believe you can get it for free from Rocket.
  • My ADCD system has zsh installed (but not configured).

Your default shell

This is set in the in your RACF OMVS segment PROGRAM field . To display it, use

TSO LU COLIN OMVS

This gave me

OMVS INFORMATION
----------------
UID= 0000990021
HOME= /u/colin
PROGRAM= /bin/sh
...

Once you logon to your shell various profiles may be executed if they exist for example for the default shell

  • /etc/profile and ~/.profile where ~ is your default home directory (see HOME= in the output of the LU command, above;

Typically the profile script will set the environment variable SHELL.
I put the following in my ~/.profile so my SSH sessions get the zsh shell.

#!/bin/sh

if [[ -z "$SSH_CLIENT"  ]]
  then
    # dummy
    xxx="$SSH_CLIENT"
  else
    # SSH_CLIENT has a value ...  so an SSH terminal
     #cho "using the zsh shell"
     zsh="/bin/zsh"
     echo "shell  $SHELL zsh  $zsh"
     if [[ $SHELL != $zsh ]]
       then
         echo "using the zsh shell"
         export SHELL="$zsh"
         exec "$zsh"
    fi
fi


zsh is documented in the UNIX System Services Command Reference. This is a big book, so I extracted the section of zsh using

pdftk USSCommand_v3r1.pdf cat 899-1071 output zsh.pdf

zsh education

I found https://thevaluable.dev/zsh-completion-guide-examples/ was a good source of information about zsh.

If zsh has been installed properly you should have an environment variable $ZDOTDIR defined. If this is missing then $HOME is used instead.

There are files

  • $ZDOTDIR/.zshenv
  • $ZDOTDIR/.zprofile
  • $ZDOTDIR/.zshrc
  • $ZDOTDIR/.zlogin
  • $ZDOTDIR/.zlogout

Which should contain configuration information

There are comment on the IBM community about the poor documention of zsh on z/OS, an how you can get started. It gives hints on setting up colours etc.

The IBM documentation says

  • Commands are first read from /etc/zshenv; this cannot be overridden. …
  • Commands are then read from $ZDOTDIR/.zshenv.
    • If the shell is a login shell, commands are read from /etc/zprofile and then $ZDOTDIR/.zprofile.
    • Then, if the shell is interactive, commands are read from /etc/zshrc and then $ZDOTDIR/.zshrc.
    • Finally, if the shell is a login shell, /etc/zlogin and $ZDOTDIR/.zlogin are read.
  • When a login shell exits, the files $ZDOTDIR/.zlogout and then /etc/zlogout are read. This happens with either an explicit exit via the exit or logout commands, or an implicit exit by reading end-of-file from the terminal

If you start with the system shell, then invoke the zsf shell, the PATH and LIBPATH statements etc will be inherited from the system shell.
If you go directly to the zsh you’ll need to set up a profile based on the system profile. ( or just invoke the existing profile).

You may want to set up a profile to set the command prompt for example the default is

$LOGNAME:$PWD:

You can set it with

export prompt='%n:%/'

to give

COLIN:/u/colin

Changing what keys do … getting the delete key to work as expected

This took a while to understand see Linux mapping the keyboard and on z/OS SSH.

Installing useful commands

I installed zopen. zopen provides lots of Unix-like packages on z/OS. Its home page says

The zopen community is here to provide popular Open Source tools and to encourage z/OS Open Source tools development. We currently host 200+ z/OS Open Source projects and we’re looking for more!

See installing zopen. I then installed the less command , and openssl. See installing packages.

Setting up sftp on z/OS with ADCD

SFTP is an FTP implementation from openssl, it copies files to and from Unix Services.

The documentation z/OS OpenSSH User’s Guide(SC27-6806-50) is very good. It is clear, and answered most of my questions.

The ADCD implementation is not 100% complete, but it does not take much to fix it.

Background

The server runs in Unix Services. When you use “START SSHD”, it runs the started task SSHD which attaches a process in Unix Services, and then the started task ends! If you use the operator command “D A,SSH*” it will show it is running in Unix Services.

The documentation has several ways of stopping it – I just use cancel!

Messages are written to the syslog daemon.

It uses port 22. ADCD.Z24C.TCPPARMS(PROF2) has the statement

PORT
    ...
    22 TCP SSHD*               ; port for sshd daemonrver

This means that jobs SSHD* are authorised to use port 22.

Getting it working

Configure syslogd

See Setting up syslogd on z/OS.

To capture messages produced by SSHD, you need syslogd configured for SSHD. For example add to /etc/syslog.conf

*.SSHD.*.* /var/log/SSHD

Generate the missing certificates

From IBMUSER in OMVS, I issued

/usr/sbin/sshd -f /etc/ssh/sshd_config

This reported two cipher specs were missing. I used the command

ssh-keygen -A

This gave me

ssh-keygen: generating new host keys: ECDSA ED25519

Starting the sshd server

Use the operator command D A,SSH* to see if it is already running. if you want to restart it, cancel it using the operator command C SSHD…

Issue the operator command start SSHD. The started task will start, and then end, but will leave a Unix Services task running.

Note: After IPL, D SSH* gives

SSHD     SSHD     *OMVSEX  OWT  SO  A=0042   PER=NO   SMC=000
                                    WUID=STC03715 USERID=START1
                                    WKL=STARTED  SCL=STCLOM   P=1

after SSHD is cancelled and restarted the output is

SSHD3    STEP1    START1   OWT  AO  A=0034   PER=NO   SMC=000
                                    WUID=STC03701 USERID=START1
                                    WKL=SERVERS  SCL=SRVOMVS  P=1

so its workload behaviour may be different.

Use it

From my Linux machine I was able to use sftp colin@10.1.1.2 .

Are my digital certificates still valid and are they slowing down my channel start?

Digital certificates are great. They allow program to program communication so each end can get information to identify the other end, and the programs can then communicate securely, with encryption, or just checking the payload has not changed.

A certificate is basically a file with two parts (or two files)  – a public certificate and a private key. You can publicize the public part to any one who wants it (which is why is is called the public part). Anyone with the private key can use it to say they are you. (If you can get access to the private key, then you can impersonate the identity)

There are times when you want to say this certificate is not longer valid. For example when I worked at IBM, I had a certificate on my laptop to access the IBM mail servers.

  • If my laptop was stolen, IBM would need to revoke the certificate.
  • When I retired from IBM, IBM revoked my certificate to prevent me from trying to access my IBM mail using my old certificate from my personal laptop.

Managing these certificate is difficult. There could be billions of certificates in use today.

Your server should validate every connection request to ensure the certificate sent from the client is still valid.

A client should validate the certificate sent by the server to ensure that it is connecting to a valid server.

In the early days of certificates, there was a big list of revoked certificates – the Certificate Revocation List(CRL). If a certificate is on the list then it has been revoked. You tend to have an LDAP server within your firewall which contains these lists of revoked certificates.

This was a step in the right direction, but it is difficult to keep these lists up to date, when you consider how many certificates are in use today, and how many organizations generate certificates. How often do I need to refresh my list? If the CRL server was to refresh it every day, it may be up to one day out of date, and report “this certificate is ok” – when it had been revoked.

These days there is a technique called Online Certificate Status Protocol (OCSP). Basically this says go and ask the site which issued this certificate if it is still valid. This is a good idea – and they say the simple ideas are the best.
How do you know who to ask? A certificate can have url information within in it Authority Information Access: OCSP – URI:http://ColinsCert.Checker.com/, or you can specify URL information in the queue manager configuration for those certificates without the Authority Information Access(AIA) information.

Often the URL in the certificate is outside of your organization, and outside of your firewall. To access the OCSP site you may need to have an SSL Proxy server which has access through the firewall.

You can configure MQ to use a (one) OCSP server for those certificates not using AIA information.  If your organization is a multinational company, you may be working with other companies who use different Certificate Authorities.   If you have certificates from more than one CA, you will not be able use MQ to check all of them to see if they are still valid.  You may want to set up an offline job which runs periodically and checks the validity of the certificates.

Starting the MQ channel can be slow

When an TLS/SSL MQ channel is started, you can use OCSP or CRL to check that a certificate is valid. This means sending a request to a remote server and waiting for a response.   The LDAP server for CRL requests is likely to be within your domain,  as your organization manages it. The OCSP  server could be outside of your control, and in the external network.  If this server is slow, or the access to the server is slow, the channel will be slow to start.  For many customers the network time within a site is under 1 millisecond, between two sites could be 50 ms. Going to an external site the time could be seconds – and dependent on the traffic to the external site.
This time may be acceptable when starting the channel, first thing in the morning, but restarting a channel during a busy period can cause a spike in traffic because no messages flow while the channel is starting. For example

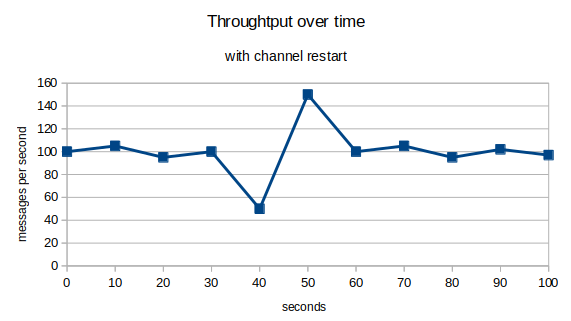

ChannelwithRestart

No messages will flow while the channel is starting, and this delay will add to the round trip time of the messages.

How do I check to see if I have a problem

This is tough. MQ does not provide any information. I used MQ internal trace when debugging problems, but you cannot run with trace enabled during normal running.

There are two parts to the validation request. The time to get to and from the server, and the time to process your request once it has got to the server.

You can use TCP Ping to get to the server (or to the proxy server).  If you are using a proxy server you cannot “ping” through the proxy server.

Openssl provides a many functions for creating and managing certificates.

You can use the command

time openssl s_client -connect server:port
or
time openssl s_client -connect -proxy host:port server:port

The “time” is a linux command which tells your the duration in milliseconds of the command following it.

The openssl s_client is a powerful ssl client program. The -connect… tries connecting to server:port. You can specify -proxy host:port to use the proxy.

The server at the remote end may not recognize the request – but you will get the response time of the request.

Running this on my laptop I got

time openssl s_client -connect 127.0.0.1:8888
CONNECTED(00000005)
140566846001600:error:1408F10B:SSL routines:ssl3_get_record:wrong version number:../ssl/record/ssl3_record.c:332:
—
no peer certificate available
—
No client certificate CA names sent
—
SSL handshake has read 5 bytes and written 233 bytes

Verification: OK
…
real 0m0.012s

The request took 0.012 seconds.

My openssl OCSP server reported

OCSP Response Data:
OCSP Response Status: malformedrequest (0x1)

You can use openssl ocsp …. to send a certificate validation request to the OCSP server and check the validity of the system – but you would have to first extract the certificates from the iKeyman keystore.

How do I test this?

I’ve created the instructions I used:

More information about OCSP.

There is a good article in the IBM Knowledge Centre here .

The article says
To check the revocation status of a digital certificate using OCSP, IBM MQ determines which OCSP responder to contact in one of two ways:

  1. Using a URL specified in an authentication information object or specified by a client application.
  2. Using the AuthorityInfoAccess (AIA) certificate extension in the certificate to be checked.

Configure a QM for OSCP checking for certificates without AIA information.

You can configure a queue manager to do OCSP checking, for those certificates without AIA information within the certificate.

There is a queue manager attribute SSLCRLNL ( SSL Certificate RevocationList Name List) which points to a name list.   This name list has a list of AUTHINFO object names.
The name list can have up to one AUTHINFO object for OCSP checking and up to 10 AUTHINFO objects for CRL checking.

You define an AUTHINFO object to define the URL of an OCSP server.

Define AUTHINFO(MYOSCP) AUTHTYPE(OCSP) OCSPURL(‘HTTP://MyOSCP.server’)

Create a name list, and add the AUTHINFO to it.

Use alter qmgr  SSLCRLNL(name) and refresh security type(SSL)
You need to change the qm.ini file SSL stanza of the queue manager configuration file see here.

OCSPAuthentication=REQUIRED|WARN|OPTIONAL
OCSPCheckExtensions= YES|NO
SSLHTTPProxyName= string

If you have a fire wall around your network, you can use SSLHTTPProxyName to get through your fire wall.

There is some good information here.

Configure client OSCP checking for certificates without AIA information.

You need the CCDT created by a queue manager rather than a JSON CCDT.
When you configure a queue manager with the AUTHINFO objects and the queue manager SSLCRLNL attributes, the information is copied to the CCDT.

This CCDT is in the usual location, for example the /prefix/qmgrs/QUEUEMANAGERNAME/@ipcc directory.

You can use a CCDT from one queue manager, when accessing other queue managers.

You need to make the CCDT file available to the client machines, for example email or FTP,  or use URL access to the CCDT.

You also should configure the mqclient.ini file see here.

How do I check to see if my certificates have AIA information.

You can use the iKeyman GUI to display details about the certificate, or a command line like

/opt/mqm/bin/runmqckm -cert -details -db key.kdb -pw password -label CLIENT

This gives output like

Label: CLIENT
Key Size: 2048
Version: X509 V3
Serial Number: 01
Issued by: ….

Extensions:
– AuthorityInfoAccess: ObjectId: 1.3.6.1.5.5.7.1.1 Criticality=false
AuthorityInfoAccess [
[accessMethod: ocsp
accessLocation: URIName: http://ocspserver.my.host/
]]

Can I turn this OCSP checking off ?

For example if you think you have a problem with OCSP server response time.

In the mqclient.ini you can set

  • ClientRevocationChecks = DISABLED No attempt is made to load certificate revocation configuration from the CCDT and no certificate revocation checking is done
  • OCSPCheckExtensions = NO   This says ignore the URL in the AIA information within a certificate.

See SSL stanza of the client configuration file.

In the qm.ini you can set

  • OCSPCheckExtensions=NO  This says ignore the URL in the AIA information within a certificate.
  • alter qmgr SSLCRLNL(‘ ‘) and refresh security type(SSL)

See SSL stanza of the queue manager configuration file and Revoked certificates and OCSP.

How do I tell if I have a problem with OCSP?

There are no events or messages which tell you the response time of requests.

You may get message AMQ9716

AMQ9716
Remote SSL certificate revocation status check failed for channel …
Explanation
IBM MQ failed to determine the revocation status of the remote SSL certificate for one of the following reasons:
(a) The channel was unable to contact any of the CRL servers or OCSP responders for the certificate.
(b) None of the OCSP responders contacted knows the revocation status of the certificate.
(c) An OCSP response was received, but the digital signature of the response could not be verified.
You can change the queue manager configuration to not produce these messages, by setting ClientRevocationChecks = OPTIONAL
From this message you cannot tell if the request got to the server.
The easiest way may be to ask the network people to take a packet trace to the URL(s) and review the time of the requests and the responses.

Using the AuthorityInfoAccess (AIA) certificate extension in the certificate.

You can create certificates containing the URL needed to validate the certificate. Most of the IBM MQ documentation assumes you have already have a certificate with this information in it.
You can use openssl to create a certificate with AIA information, and import it into the iKeyman keystore.   See here.

You cannot use IBM GSKIT program iKeyman to generate this data because it does not support it. You can use iKeyman to display the information once it is inside the keystore.

Timing the validation request

Openssl has a command to validate a certificate for example

openssl ocsp -CAfile cacert.pem -issuer cacert.pem -cert servercert.pem -url http://OCSP.server.com:port -resp_text

You can use the linux time command, for example

time openssl ocsp -CAfile cacert.pem -issuer cacert.pem -cert servercert.pem -url http://OCSP.server.com:port -resp_text

you get

Response verify OK
servercert.pem: good
real 0m0.040s

The time taken to go to a OCSP server on the same machine is 40 milliseconds. The time for a ping to 127.0.0.1 was also 40 ms.

Thanks…

Thanks to Morag of MQGEM, and Gwydion at IBM for helping me get my head round this topic.
